public class FreePlaneBendCommand : RasterCommand
public ref class FreePlaneBendCommand : public RasterCommand
class FreePlaneBendCommand(RasterCommand):
For an example, the following figure shows an image before the effect is applied.
The following figure shows the same image after the effect has been applied.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.

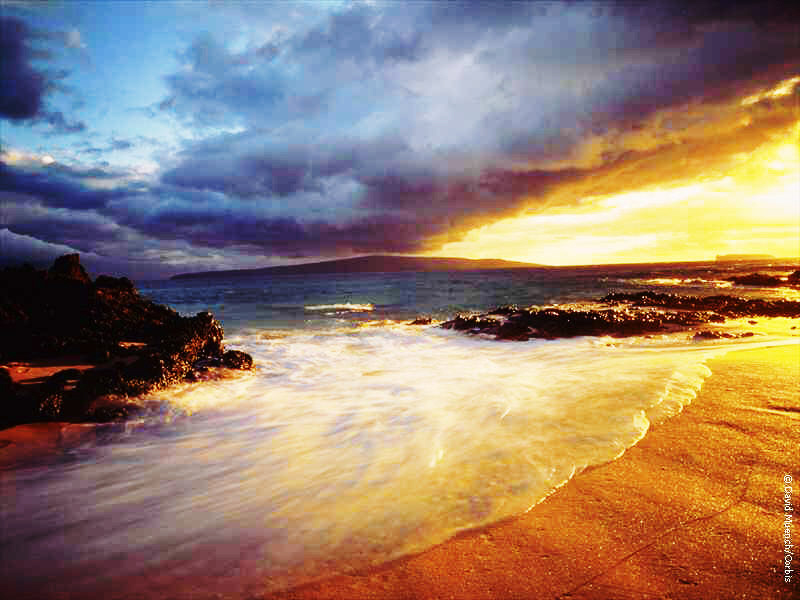

Free Plane Bend Function - Before

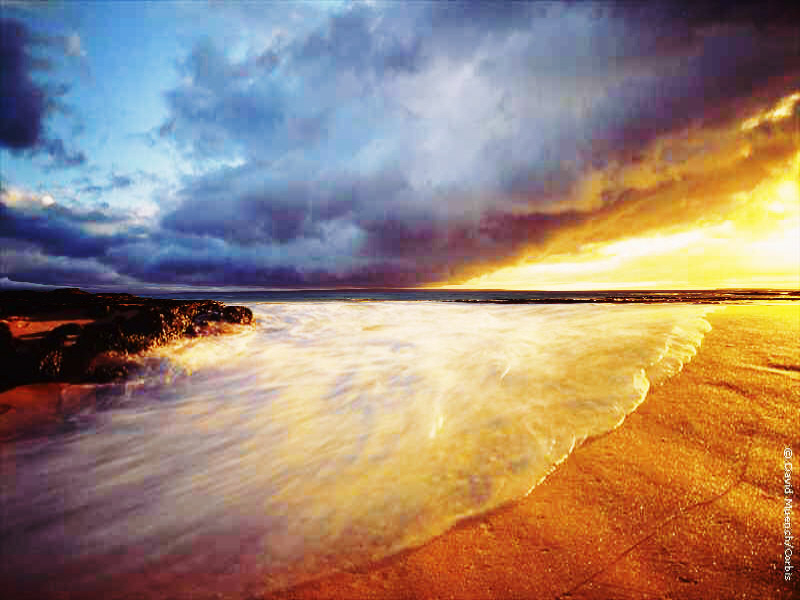

Free Plane Bend Function - After
View additional platform support for this Free Plane Bend function.
Run the FreePlaneBendCommand on an image.
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;
using Leadtools.ImageProcessing.Effects;
public void FreePlaneBendCommandExample()
{
// Load an image
RasterCodecs codecs = new RasterCodecs();
codecs.ThrowExceptionsOnInvalidImages = true;
RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));
// Prepare the command
FreePlaneBendCommand command = new FreePlaneBendCommand();
LeadPoint[] UserPoint = new LeadPoint[4];
int[] Curve = new int[13];
//Apply the filter
UserPoint[0].X = 0;
UserPoint[0].Y = 0;
UserPoint[1].X = 3;
UserPoint[1].Y = 10;
UserPoint[2].X = 9;
UserPoint[2].Y = -10;
UserPoint[3].X = 12;
UserPoint[3].Y = 0;
EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear);
for (int i = 0; i < Curve.Length; i++)
Curve[i] /= 50;
command.Flags = FreePlaneBendCommandFlags.Color | FreePlaneBendCommandFlags.Vertical;
command.Scale = 200;
command.FillColor = new RasterColor(255, 0, 0);
command.Curve = Curve;
command.Run(image);
codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);
}
static class LEAD_VARS
{
public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
