ColoredPencilExtendedCommand Class

Summary
Applies an effect to a bitmap that makes it look like it has been drawn with colored pencils. This method is available in the Imaging Pro and above toolkits.
Syntax
C#
C++/CLI
Python
public class ColoredPencilExtendedCommand : RasterCommand
public ref class ColoredPencilExtendedCommand : public RasterCommand
class ColoredPencilExtendedCommand(RasterCommand):
Remarks
  • This method applies an effect to an image that makes it look like it has been drawn with colored pencils.

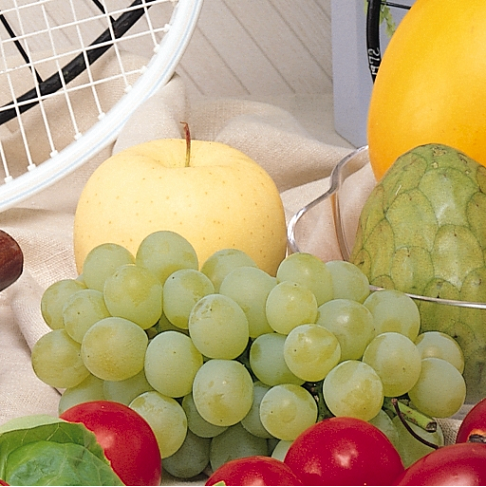

  • As an example, if you use the following figure:


If you call the ColoredPencilExtendedCommand using the following values:

Parameter Value
Size 5
Strength 4
Threshold 0
PencilRoughness 250
StrokeLength 15
PaperRoughness 100
Angle 0
Flags ColoredPencilExtendedCommandFlags.Artistic

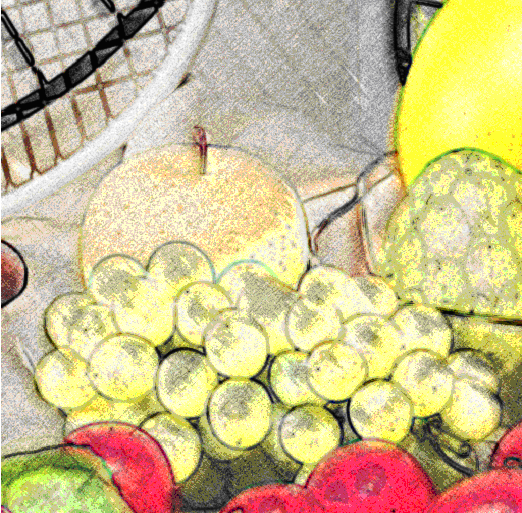

The following figure results:

  • This method supports 12-bit and 16-bit grayscale and 48 and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit Effects images is available only in the Document/Medical toolkits.
  • This method does not support signed data images.
  • This command does not support 32-bit grayscale images.

Advanced Colored Pencil Function - Before

Advanced Colored Pencil Function - Before

Advanced Colored Pencil Function - After

Advanced Colored Pencil Function - After

View additional platform support for this Advanced Colored Pencil function.

Example
C#
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;


// Run the ColoredPencilExtendedCommand on an image and applies the Colored Pencil Extended filter.
public void ColoredPencilExtendedCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\NaturalFruits.jpg"));

   // Prepare the command
   ColoredPencilExtendedCommand command = new ColoredPencilExtendedCommand();
   command.Size = 5;
   command.Strength = 4;
   command.Threshold = 0;
   command.PencilRoughness = 250;
   command.StrokeLength = 15;
   command.PaperRoughness = 100;
   command.Flags = ColoredPencilExtendedCommandFlags.Artistic;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\Result - ColoredPencilExtendedCommandCS.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
Requirements

Target Platforms

Help Version 22.0.2023.3.31
