ImageViewerSingleViewLayout Object

Summary

Defines the single view layout.

Syntax
TypeScript
JavaScript
function lt.Controls.ImageViewerSingleViewLayout
	extends lt.Controls.ImageViewerViewLayout
class lt.Controls.ImageViewerSingleViewLayout()
	extends ImageViewerViewLayout
Remarks

ImageViewerSingleViewLayout defines a view layout where the items are layered on top of each other. Only a single item is visible at any time and this is controlled by the ActiveItem. An image viewer with 10 items and ActiveItem set to the first in the list (index of 0) will look like this:

SingleLayout1

When the ActiveItem is set to the third item in the list (index of 4), the same viewer will look like this:

SingleLayout2

ImageViewerSingleViewLayout is also used by the viewer when it is being used in a single item mode. And when a new instance of ImageViewer is created using the default constructor, a new instance of ImageViewerSingleViewLayout is created and set in ViewLayout.

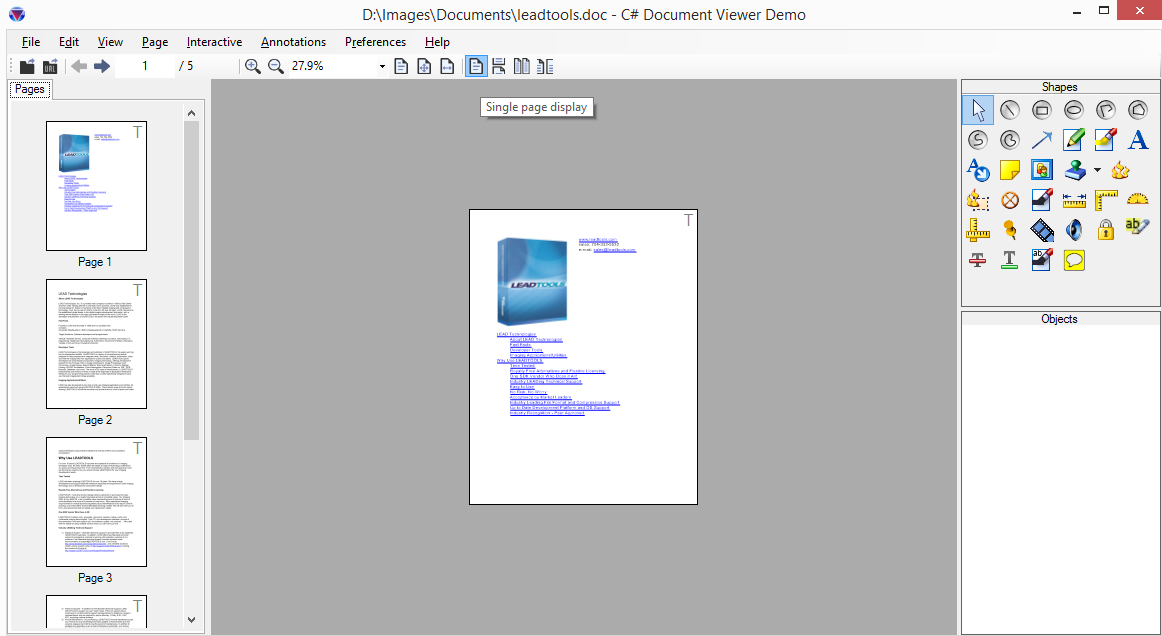

Here is the LEADTOOLS Document View in a single page mode:

DocumentViewerSingle

.

Notice how only a single page is being viewed. The scrollbars for the main view are not visible in this case since all the page boundary is inside the view. For more information, refer to Image Viewer Layouts, Image Viewer Items, Image Viewer Transformation and Image Viewer Bounds and Transform.

Example
ViewLayout.ts
ImageViewer.ts
ViewLayout.js
ImageViewer.js
ViewLayout.html
import { ImageViewer_Example } from "../ImageViewer";

export class ImageViewer_ViewLayoutExample {
   private viewerExample;
   constructor() {
      this.viewerExample = new ImageViewer_Example(this.run);
   }

   private run = (viewer: lt.Controls.ImageViewer) => {
      let flip: boolean = false;
      const setLayout = () => {
         flip = !flip;
         let layout: lt.Controls.ImageViewerViewLayout;
         if (flip) {
            layout = new lt.Controls.ImageViewerVerticalViewLayout();
            (layout as lt.Controls.ImageViewerVerticalViewLayout).columns = 2;
         }
         else {
            layout = new lt.Controls.ImageViewerHorizontalViewLayout();
            (layout as lt.Controls.ImageViewerHorizontalViewLayout).rows = 2;
         }
         viewer.viewLayout = layout;
      }

      // Set the initial layout
      setLayout();

      // Add borders and padding
      viewer.viewBorderThickness = 2;
      viewer.itemPadding = lt.Controls.ControlPadding.createAll(20);

      // Clear the items and add 6 new items
      viewer.beginUpdate();
      viewer.items.clear();
      for (let i = 0; i < 6; i++) {
         const item: lt.Controls.ImageViewerItem = new lt.Controls.ImageViewerItem();
         item.url = "https://demo.leadtools.com/images/jpeg/cannon.jpg";
         item.text = "Item " + i;
         viewer.items.add(item);
      }
      viewer.endUpdate();

      // Zoom out so we can see all the items
      viewer.zoom(lt.Controls.ControlSizeMode.fit, .5, viewer.defaultZoomOrigin);

      // Add a button to update the layout
      const button = document.createElement("button");
      button.innerHTML = "Change Layout";
      button.onclick = () => {
         setLayout();
      };
      const output = document.getElementById("output");
      output.appendChild(button);
   }
}
export class ImageViewer_Example {
   // LEADTOOLS ImageViewer to be used with this example
   protected imageViewer: lt.Controls.ImageViewer = null;
   // Generic state value used by the examples
   public timesClicked: number = 0;

   constructor(callback?: (viewer: lt.Controls.ImageViewer) => void) {
      // Set the LEADTOOLS license. Replace this with your actual license file
      lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);

      // Create an image viewer inside the imageViewerDiv element
      const imageViewerDiv = document.getElementById("imageViewerDiv");
      const createOptions: lt.Controls.ImageViewerCreateOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);
      this.imageViewer = new lt.Controls.ImageViewer(createOptions);
      this.imageViewer.viewVerticalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.viewHorizontalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.autoCreateCanvas = true;

      // Add Pan/Zoom interactive mode
      // Click and drag to pan, CTRL-Click and drag to zoom in and out
      this.imageViewer.interactiveModes.add(new lt.Controls.ImageViewerPanZoomInteractiveMode());

      // Load an image
      this.imageViewer.imageUrl = "https://demo.leadtools.com/images/jpeg/cannon.jpg";

      this.imageViewer.zoom(lt.Controls.ControlSizeMode.fit, .9, this.imageViewer.defaultZoomOrigin);

      const exampleButton = document.getElementById("exampleButton");
      exampleButton.addEventListener("click", () => {
         this.timesClicked++;
         // Run the example
         if (callback)
            callback(this.imageViewer);
      });
   }
}
import { ImageViewer_Example } from "../ImageViewer";

export class ImageViewer_ViewLayoutExample {
   viewerExample;
   constructor() {
      this.viewerExample = new ImageViewer_Example(this.run);
   }

   run = (viewer) => {
      let flip = false;
      const setLayout = () => {
         flip = !flip;
         let layout;
         if (flip) {
            layout = new lt.Controls.ImageViewerVerticalViewLayout();
            (layout).columns = 2;
         }
         else {
            layout = new lt.Controls.ImageViewerHorizontalViewLayout();
            (layout).rows = 2;
         }
         viewer.viewLayout = layout;
      }

      // Set the initial layout
      setLayout();

      // Add borders and padding
      viewer.viewBorderThickness = 2;
      viewer.itemPadding = lt.Controls.ControlPadding.createAll(20);

      // Clear the items and add 6 new items
      viewer.beginUpdate();
      viewer.items.clear();
      for (let i = 0; i < 6; i++) {
         const item = new lt.Controls.ImageViewerItem();
         item.url = "https://demo.leadtools.com/images/jpeg/cannon.jpg";
         item.text = "Item " + i;
         viewer.items.add(item);
      }
      viewer.endUpdate();

      // Zoom out so we can see all the items
      viewer.zoom(lt.Controls.ControlSizeMode.fit, .5, viewer.defaultZoomOrigin);

      // Add a button to update the layout
      const button = document.createElement("button");
      button.innerHTML = "Change Layout";
      button.onclick = () => {
         setLayout();
      };
      const output = document.getElementById("output");
      output.appendChild(button);
   }
}
export class ImageViewer_Example {
   // LEADTOOLS ImageViewer to be used with this example
   imageViewer = null;
   // Generic state value used by the examples
   timesClicked = 0;

   constructor(callback) {
      // Set the LEADTOOLS license. Replace this with your actual license file
      lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);

      // Create an image viewer inside the imageViewerDiv element
      const imageViewerDiv = document.getElementById("imageViewerDiv");
      const createOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);
      this.imageViewer = new lt.Controls.ImageViewer(createOptions);
      this.imageViewer.viewVerticalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.viewHorizontalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.autoCreateCanvas = true;

      // Add Pan/Zoom interactive mode
      // Click and drag to pan, CTRL-Click and drag to zoom in and out
      this.imageViewer.interactiveModes.add(new lt.Controls.ImageViewerPanZoomInteractiveMode());

      // Load an image
      this.imageViewer.imageUrl = "https://demo.leadtools.com/images/jpeg/cannon.jpg";

      this.imageViewer.zoom(lt.Controls.ControlSizeMode.fit, .9, this.imageViewer.defaultZoomOrigin);

      const exampleButton = document.getElementById("exampleButton");
      exampleButton.addEventListener("click", () => {
         this.timesClicked++;
         // Run the example
         if (callback)
            callback(this.imageViewer);
      });
   }
}
<!doctype html>
<html lang="en">
<title>Controls Example | ViewLayout</title>

<head>
   <script src="https://code.jquery.com/jquery-2.2.4.min.js"
      integrity="sha256-BbhdlvQf/xTY9gja0Dq3HiwQF8LaCRTXxZKRutelT44=" crossorigin="anonymous"></script>

   <script src="../../LT/Leadtools.js"></script>
   <script src="../../LT/Leadtools.Controls.js"></script>
   <script src="../../LT/Leadtools.Annotations.Engine.js"></script>
   <script src="../../LT/Leadtools.Annotations.Designers.js"></script>
   <script src="../../LT/Leadtools.Annotations.Rendering.Javascript.js"></script>
   <script src="../../LT/Leadtools.Annotations.Automation.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Main.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Color.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Core.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Effects.js"></script>
   <script src="../../LT/Leadtools.Document.js"></script>
   <script src="../../LT/Leadtools.Document.Viewer.js"></script>
   <style>
      body {
         font-family: 'Segoe UI', sans-serif;
      }

      #imageViewerDiv {
         border: 1px solid #888;
         width: 500px;
         height: 500px;
         background-color: #eee;
      }
   </style>

   <!-- All demo files are bundled and appended to the window -->
   <script src="../../bundle.js" type="text/javascript"></script>
</head>

<body>
   <p>Press and drag on the image to pan.</p>
   <p>Hold down the control key and press and drag on the image or pinch with two fingers to zoom in and out.</p>
   <div>
      <button type="button" id="exampleButton">Run Example</button>
   </div>
   <div id="imageViewerDiv"></div>
   <div id="output"></div>
</body>

<script>
   window.onload = () => {
      const example = new window.examples.ImageViewer.ViewLayout();

   };
</script>
</html>
Requirements

Target Platforms

Help Version 22.0.2023.2.4
