Delete Method

Summary

Deletes the specified item from the IOD Structure.

Syntax
C#
VB
Java
C++
public DicomIod Delete(
   DicomIod iod
)
Public Function Delete( _
   ByVal iod As DicomIod _
) As DicomIod
public DicomIod delete(DicomIod iod)
public:
DicomIod^ Delete(
   DicomIod^ iod
)

Parameters

iod
The item to be deleted.

Return Value

A DicomIod class that contains adjacent item. If the item being deleted has a sibling (same level, same parent), following it, the returned class will be this sibling. If the item being deleted does not have a sibling following it, but has a sibling preceding it, the returned pointer class will be the preceding sibling. If the item being deleted is an only child, the returned class will be the parent.

Remarks
  • You can remove all items from the IOD Structure using Reset.
  • Since the IOD Structure is stored internally as a tree, the deletion must be carried out as a tree.
  • Since the IOD Structure is stored internally as a tree, the deletion must be carried out as a tree.

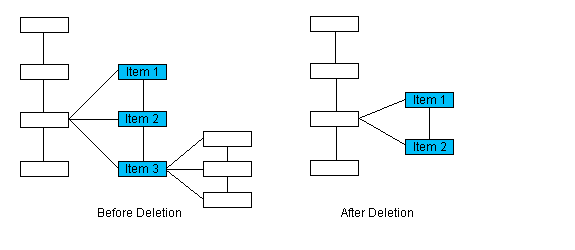

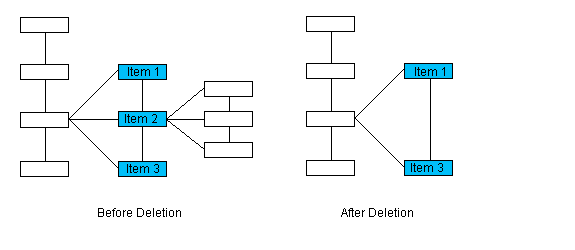

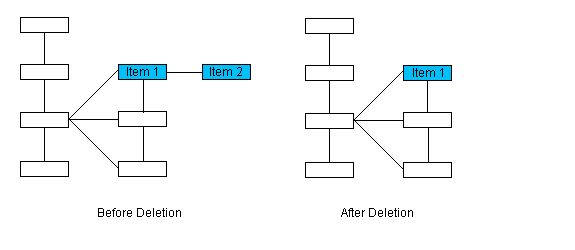

  • Below are illustrations of these situations: For the sake of these illustrations, the order of siblings is top to bottom. A preceding sibling is drawn above the sibling it precedes, a following sibling is drawn below the sibling it follows. Please note that the numbering of the items of interest is arbitrary, and does not imply order. In this illustration item 2 will be deleted. Since it has a following sibling, the returned class will be item 3. ioddlaft.gif In this illustration item 3 will be deleted. Since it does not have a following sibling, but does have a preceding sibling, the returned class will be item 2. ioddlbef.gif In this illustration item 2 will be deleted. Since it is an only child, the returned class will be the parent, item 1. ioddlpar.gif In this illustration item 1 will be deleted. Since it has no siblings and no parent, this method will return null. ioddlnul.gif

Example

For an example, refer to Reset.

Requirements

Target Platforms

Help Version 20.0.2019.9.19
