LEAD Video EFX Motion Blur FilterUser Interface

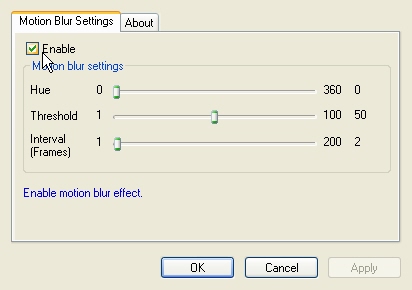

The Motion Blur Video filter blurs moving objects. It gives the appearance of a random glow around the motion. The property page is shown in the figure below:

The Motion Blur property page provides a user interface for changing the filter's attributes.

Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:

Control

Description

Enable check box

Enables/Disables the effect.

Hue slider

Value used to change the color of the effect. Hue is a color wheel (360 degree). Range: 0 to 360.

Threshold slider

Value used to control an object's detection level. A lower threshold provides stronger object detection. Range: 1 to 100.

Interval (Frames) slider

Number of frames to use when creating the effect. The higher the number, the greater the blur since more frames are being used. Range: 1 to 200.
