LEAD Video Color Replacement Filter User Interface

The Color Replacement filter replaces any range of colors in a video stream with another range of colors. The effect uses the HSV color space. The property page is shown in the figure below:

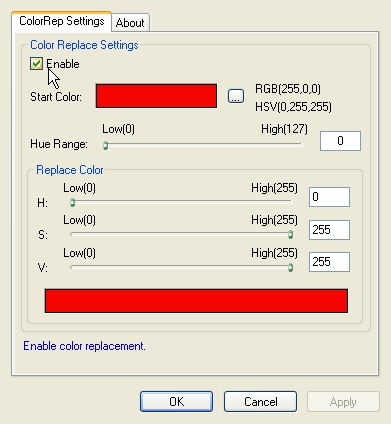

LEAD Video Color Replacement property page

Use the Color Replacement property page to change the filter's attributes. Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or abandon them by selecting Cancel. To display general information about a control, position the mouse pointer over it. The following table shows the controls and their descriptions:

Control

Description

Enable Color Replacement check box

Enables/Disables the effect.

Start Color button ()

Sets the start color in RGB format. This is the color that will be replaced.

Hue Range slider and edit box

Sets the color range.

Replace Color



H slider and edit box

Sets the hue value for the replacement color.

S slider and edit box

Sets the saturation value for the replacement color.

V slider and edit box

Sets the brightness value for the replacement color.
