ImageViewer Class

Summary

Represents a scrollable control that displays one or more raster or SVG images with optional interactive UI operations.

Syntax

C#
VB
C++
public class ImageViewer : INotifyPropertyChanged, ScrollableControl
Public Class ImageViewer
   Inherits System.Windows.Forms.ScrollableControl
public ref class ImageViewer : System::Windows::Forms::ScrollableControl

Remarks

The LEADTOOLS ImageViewer class represents a control that displays one or more images with optional interactive UI operations. It supports single item applications such as MS-Paint or multiple item applications such as Adobe Acrobat.

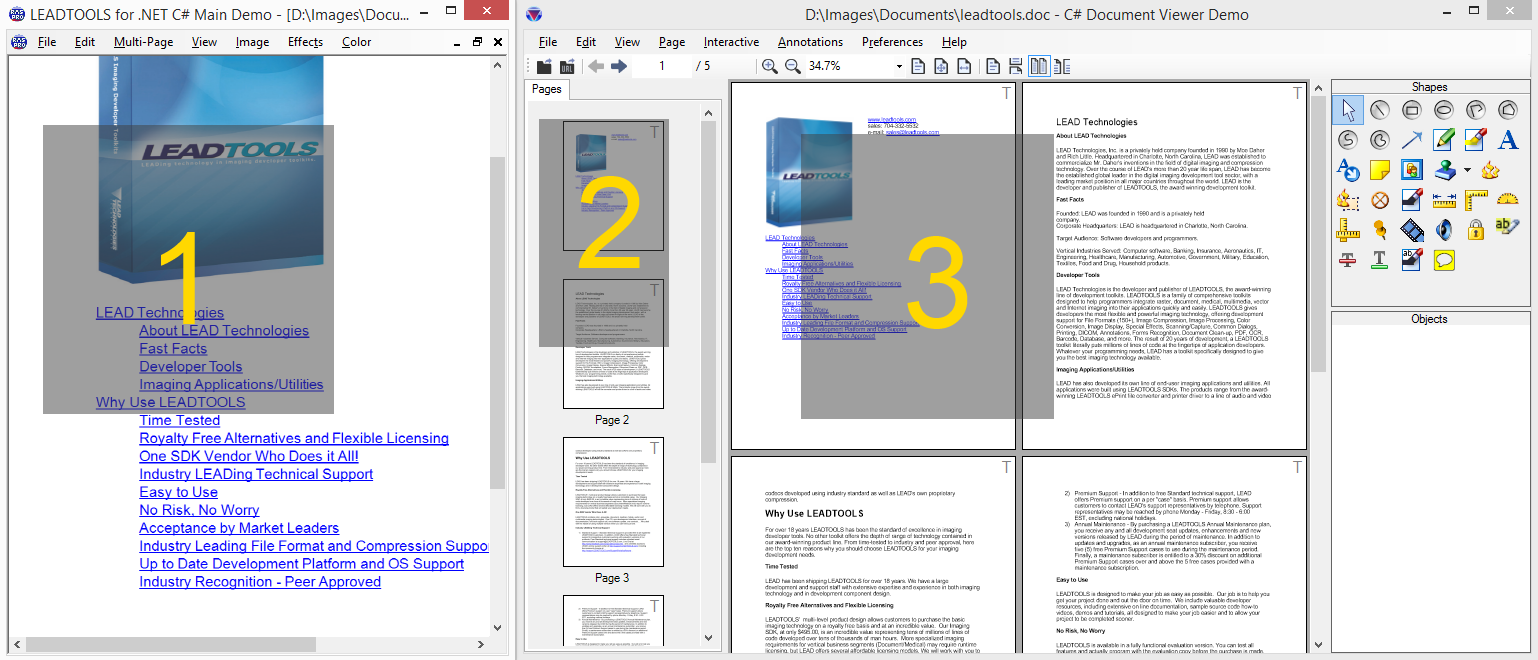

  1. LEADTOOLS Main Demo uses an Image Viewer instance in single layout mode to view the main image

  2. LEADTOOLS Document Viewer uses an Image Viewer instance in vertical layout to view thumbnails of pages

  3. And another Image Viewer instance with in double layout to view the main content

ImageViewer supports the following features

  • Single or multiple items each with its own image data, size and optional additional transformation

  • Built in support for raster and SVG images and documents including loading directly from disk file or URLs

  • Extensible layout system with built-in support for single, vertical and horizontal layouts

  • Rich built-in and fully customizable and extensible user-interface interaction support for panning, zooming, magnify glass, rubber banding and many more. Support for both mouse and touch input

  • Fully customizable appearance and position

  • Auto and custom scroll modes

  • Owner draw rendering

  • Viewing options including infinite zooming with size modes (fit, fit page, etc.), rotation at any angle, flip, reverse, color inversion and low level transformation

  • High level items operations for hit-testing and automatically go to a certain item or page

  • Drag and drop between the image viewer and external sources such as the file system or other image viewers instances

  • Floater and region support

  • Virtualization mode for handling large number of images

Refer to the following topics for more in-depth information on each group of functionalities:

Example

This example will create an ImageViewer, set the interactive mode to Pan/Zoom and adds an image to it.

C#
VB
using Leadtools;
using Leadtools.Controls;
using Leadtools.Codecs;
using Leadtools.Drawing;
using LeadtoolsExamples.Common;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Color;

public void ImageViewer_Example()
{
   // Create the form that holds the ImageViewer
   new MyForm().ShowDialog();
}

class MyForm : Form
{
   public MyForm()
   {
      this.Size = new Size(800, 800);
   }

   // LEADTOOLS ImageViewer to be used with this example
   private ImageViewer _imageViewer;
   // Information label
   private Label _label;
   // Generic state value used by the examples
   private bool _firstCall = true;

   protected override void OnLoad(EventArgs e)
   {
      // Create a panel to the top
      var panel = new Panel();
      panel.Dock = DockStyle.Top;
      panel.BorderStyle = BorderStyle.FixedSingle;
      this.Controls.Add(panel);

      // Add an "Example" button to the panel
      var button = new Button();
      button.Text = "&Example";
      button.Click += (sender, e1) => Example();
      panel.Controls.Add(button);

      // Add a label to the panel
      _label = new Label();
      _label.Top = button.Bottom;
      _label.Width = 800;
      _label.Text = "Example...";
      panel.Controls.Add(_label);

      // Create the image viewer taking the rest of the form
      _imageViewer = new ImageViewer();
      _imageViewer.Dock = DockStyle.Fill;
      _imageViewer.BackColor = Color.Bisque;
      this.Controls.Add(_imageViewer);
      _imageViewer.BringToFront();

      // Add Pan/Zoom interactive mode
      // Click and drag to pan, CTRL-Click and drag to zoom in and out
      _imageViewer.DefaultInteractiveMode = new ImageViewerPanZoomInteractiveMode();

      // Load an image
      using (var codecs = new RasterCodecs())
         _imageViewer.Image = codecs.Load(Path.Combine(ImagesPath.Path, "image1.cmp"));

      _firstCall = true;

      base.OnLoad(e);
   }

   private void Example()
   {
      // Example code goes here
   }
}
Imports Leadtools
Imports Leadtools.Controls
Imports Leadtools.Codecs
Imports Leadtools.Drawing
Imports Leadtools.ImageProcessing
Imports Leadtools.ImageProcessing.Color
Imports LeadtoolsControlsExamples.LeadtoolsExamples.Common

Public Sub ImageViewer_Example()
   ' Create the form that holds the ImageViewer
   CType(New MyForm(), MyForm).ShowDialog()
End Sub

Private Class MyForm : Inherits Form
   Public Sub New()
      Me.Size = New Size(800, 800)
   End Sub

   ' LEADTOOLS ImageViewer to be used with this example
   Private _imageViewer As ImageViewer
   ' Information label
   Private _label As Label
   ' Generic state value used by the examples
   Private _firstCall As Boolean = True

   Protected Overrides Sub OnLoad(ByVal e As EventArgs)
      ' Create a panel to the top
      Dim panel As New Panel()
      panel.Dock = DockStyle.Top
      panel.BorderStyle = BorderStyle.FixedSingle
      Me.Controls.Add(panel)

      ' Add an "Example" button to the panel
      Dim button As New Button()
      button.Text = "&Example"
      AddHandler button.Click, Sub(sender, e1) Example()
      panel.Controls.Add(button)

      ' Add a label to the panel
      _label = New Label()
      _label.Top = button.Bottom
      _label.Width = 800
      _label.Text = "Example..."
      panel.Controls.Add(_label)

      ' Create the image viewer taking the rest of the form
      _imageViewer = New ImageViewer()
      _imageViewer.Dock = DockStyle.Fill
      _imageViewer.BackColor = Color.Bisque
      Me.Controls.Add(_imageViewer)
      _imageViewer.BringToFront()

      ' Add Pan/Zoom interactive mode
      ' Click and drag to pan, CTRL-Click and drag to zoom in and out
      _imageViewer.DefaultInteractiveMode = New ImageViewerPanZoomInteractiveMode()

      ' Load an image
      Using codecs As New RasterCodecs()
         _imageViewer.Image = codecs.Load(Path.Combine(ImagesPath.Path, "image1.cmp"))
      End Using

      _firstCall = True

      MyBase.OnLoad(e)
   End Sub

   Private Sub Example()
      ' Example code goes here
   End Sub
End Class

Requirements

Target Platforms
