Run the PlaneBendCommandBitmapEffect on an image.

Visual Basic

Copy Code

Public Sub PlaneBendCommandBitmapEffectExample(ByVal element As FrameworkElement)    Dim effect As PlaneBendCommandBitmapEffect = New PlaneBendCommandBitmapEffect()    effect.BendFactor = 100    effect.BrightColor = Color.FromRgb(255, 255, 255)    effect.BrightLength = 20000    effect.CenterPoint = New System.Windows.Point(140, 105)    effect.Distance = 300    effect.EndBright = 100    effect.FillColor = Color.FromRgb(255, 255, 255)    effect.Flags = PlaneCommandBitmapEffectsFlags.Down Or PlaneCommandBitmapEffectsFlags.Color    effect.PlaneOffset = 200    effect.PyramidAngle = 0    effect.Repeat = -1    effect.StartBright = 0    effect.Stretch = 100    effect.ZValue = 0    element.BitmapEffect = effect    Dim storyboard As Storyboard = New Storyboard()    Dim animation1 As Int32Animation = New Int32Animation()    animation1.From = 100    animation1.To = 900    animation1.Duration = New Duration(TimeSpan.Parse("0:0:5"))    animation1.RepeatBehavior = RepeatBehavior.Forever    animation1.AutoReverse = True    storyboard.SetTargetName(animation1, "AnimatedBitmapEffect")    storyboard.SetTargetProperty(animation1, New PropertyPath(PlaneBendCommandBitmapEffect.BendFactorProperty))    element.RegisterName("AnimatedBitmapEffect", effect)    storyboard.Children.Add(animation1)    storyboard.Begin(element) End Sub

C#

Copy Code

public void PlaneBendCommandBitmapEffectExample(FrameworkElement element)  {     PlaneBendCommandBitmapEffect effect = new PlaneBendCommandBitmapEffect();     effect.BendFactor = 100;     effect.BrightColor = Color.FromRgb(255, 255, 255);     effect.BrightLength = 20000;     effect.CenterPoint = new Point(140, 105);     effect.Distance = 300;     effect.EndBright = 100;     effect.FillColor = Color.FromRgb(255, 255, 255);     effect.Flags = PlaneCommandBitmapEffectsFlags.Down | PlaneCommandBitmapEffectsFlags.Color;     effect.PlaneOffset = 200;     effect.PyramidAngle = 0;     effect.Repeat = -1;     effect.StartBright = 0;     effect.Stretch = 100;     effect.ZValue = 0;     element.BitmapEffect = effect;       Storyboard storyboard = new Storyboard();       Int32Animation animation1 = new Int32Animation();     animation1.From = 100;     animation1.To = 900;     animation1.Duration = new Duration(TimeSpan.Parse("0:0:5"));     animation1.RepeatBehavior = RepeatBehavior.Forever;     animation1.AutoReverse = true;       Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect");     Storyboard.SetTargetProperty(animation1, new PropertyPath(PlaneBendCommandBitmapEffect.BendFactorProperty));     element.RegisterName("AnimatedBitmapEffect", effect);     storyboard.Children.Add(animation1);       storyboard.Begin(element);  }

XAML

Copy Code

<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.SpecialEffects;assembly=Leadtools.Windows.Media.Effects">    <Grid>      <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 15\Images\slave.jpg">        <Image.BitmapEffect>          <lteffects:PlaneBendCommandBitmapEffect x:Name="AnimatedBitmapEffect" FillColor="White" BrightColor="White" BendFactor="100" BrightLength="20000" Distance="300" EndBright="100" Flags="Down, Color" PlaneOffset="200" PyramidAngle="0" Repeat="-1" StartBright="0" Stretch="100" ZValue="0" />        </Image.BitmapEffect>        <Image.Triggers>          <EventTrigger RoutedEvent="Image.Loaded">            <BeginStoryboard>              <Storyboard>                <Int32Animation Storyboard.TargetName="AnimatedBitmapEffect" Storyboard.TargetProperty="BendFactor" From="100" To="900" Duration="0:0:5" RepeatBehavior="Forever" AutoReverse="true" />              </Storyboard>            </BeginStoryboard>          </EventTrigger>        </Image.Triggers>      </Image>    </Grid>  </Page>

• This command shows the effect of placing images on planes along the Z-axis and bending them toward a specific point. These images may be placed above, below, to the left or to the right of the Z-axis. An external light source of the specified color and brightness may be shined on the images. The brightness may vary along the z-axis according to the bright length value. The line of images may be bent toward a specific point by setting a bending value.
• By changing the center point and the viewing screen Z-offset, you can simulate moving along the axis.
• For an example, see the following figure:

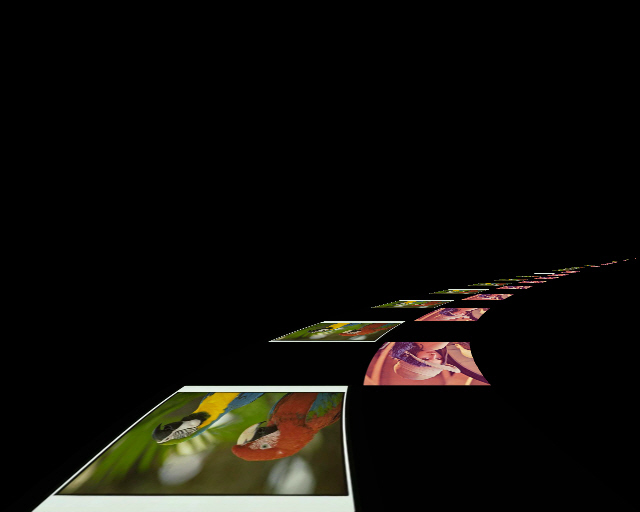

  The following figure shows the same image, after the effect has been applied:



  To obtain this effect, the following settings were used with the method:

  1. CenterPoint = new Point(640, 256)
  2. ZValue = 0
  3. Distance = 256
  4. PlaneOffset = 256
  5. Repeat = -1
  6. PyramidAngle = 0
  7. Stretch = 100
  8. BendFactor = 500
  9. StartBright = 0
  10. EndBright = 0
  11. BrightLength = 50
  12. BrightColor = FromRgb(255, 255, 255)
  13. FillColor = FromRgb(0, 0, 0)
  14. Flags = PlaneCommandBitmapEffectsFlags.Down | PlaneCommandBitmapEffectsFlags.Color
• This command does not support signed data images.

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.SpecialEffects.PlaneBendCommandBitmapEffect

Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Vista, and Windows Server 2003
