Implement an AWS S3 Bucket Cache - C# .NET 6

This tutorial shows how to implement Amazon Web Services (AWS) S3 Bucket Cache with the LEADTOOLS Document Library for use with our HTML5/JS Document Viewer.

Overview
Summary This tutorial covers how to use Amazon Web Services (AWS) S3 Bucket Cache in an application that uses the LEADTOOLS Document Library.
Completion Time 30 minutes
Platform .NET 6+
IDE Visual Studio 2022
Runtime License Download LEADTOOLS
Try it in another language

Required Knowledge

This implementation is a fully-fledged example that can be used in a production environment. It makes use of JSON Serialization, which will make it compatible across different LEADTOOLS versions. For more information on the serialization of data, refer to CacheSerializationMode.

Note

This implementation does not handle the expiring of cache files. You will need to configure your AWS S3 implementation properly, if you want the files to be managed and deleted after a certain "expiring" time frame has passed.

Before any functionality from the SDK can be leveraged, a valid runtime license will have to be set.

For instructions on how to obtain a runtime license refer to Obtaining a License.

Open the Project

The functionality in this tutorial is built on the functionality of the .NET Document Service and JS Document Viewer. In order to open the project, navigate to <INSTALL_DIR>\Examples\Viewers\JS\DocumentViewerDemo and open the DocumentViewerDemo.sln solution file.

The Document Service projects are set up to run alongside many of our HTML5/JS Demos out of box (i.e. DocumentViewerDemo). For a step by step on how to configure and run the .NET Core Document Service, you can take a look into the Configure and Run the Document Service tutorial.

Open the Document Viewer and Document Service Project

DocumentViewerDemo.sln is the solution file to open the Document Service. Ensure that the .Net Core document service is the one being run. The project file is located at: <INSTALL_DIR>\LEADTOOLS23\Examples\Document\JS\DocumentServiceDotNet\net

The .Net 6 Document Service will launch on the following URL and port http://localhost:30000. The JS Document Viewer will launch on the following URL and port https://localhost:20010.

You will need to update the serviceConfig.json file in the DocumentViewerDemo to use the appropraite Document Service address for Net 6+. You can do this by updating the serviceHost value to use http://localhost:30000.

Set the License File

The License unlocks the features needed for the project. It must be set before any toolkit function is called. For details, including tutorials for different platforms, refer to the Setting a Runtime License tutorial.

There are two types of runtime licenses:

Configure the Project

This example code requires the following NuGet package:

Create and Implement the S3BucketCache Class

In the Solution Explorer, right-click Class1.cs and select Rename from the context menu. Type S3BucketCache.cs and press Enter.

Open the S3BucketCache.cs file and add the below code to create the S3BucketCache class.

C#
using System;
using System.Collections.Generic;
using System.IO;
using System.Threading.Tasks;

using Newtonsoft.Json;

using Amazon.S3;
using Amazon.S3.Model;

using Leadtools.Caching;

namespace Leadtools.Services.Tools.Cache
{

    /// <summary>
    /// Wraps a AWS S3 AmazonS3Client object to be used with the LEADTOOLS Document Library
    /// </summary>
    public class S3BucketCache : ObjectCache
    {
        private S3BucketCache() { }

        //S3Client used to connect to S3 Instance
        AmazonS3Client _client;
        //Name of the bucket holding all cache entries
        public string _bucketName;
        Dictionary<string, string[]> currentCacheObjectListDict = new Dictionary<string, string[]>();

        // <summary>
        // Initialized a LEADTools Object Cache wrapper from a AWS S3 Client
        // </summary>
        // <param name="client">Fully-initialized AmazonS3DClient object ready to be used.</param>
        // <param name="bucketName">Name of the bucket used for the cache in your S3 implementation.</param>
        // </summary>
        public S3BucketCache(AmazonS3Client client, string bucketName = "LeadBucket")
        {
            this._client = client;
            //If you do not pass a bucketName, then "leadbucketcache" will be the default bucketname that will be used.
            this._bucketName = bucketName;
        }

        //
        // These members must be implemented by our class and are called by the Document toolkit
        //

        // Name of the Cache
        public override string Name
        {
            get
            {
                return "S3BucketCache";
            }
        }

        //Use JSON serialization for our policy and data files
        public override CacheSerializationMode PolicySerializationMode
        {
            get
            {
                return CacheSerializationMode.Json;
            }

            set
            {
                throw new NotSupportedException();
            }
        }

        public override CacheSerializationMode DataSerializationMode
        {
            get
            {
                return CacheSerializationMode.Json;
            }

            set
            {
                throw new NotSupportedException();
            }
        }

        // We have no special extra support
        public override DefaultCacheCapabilities DefaultCacheCapabilities
        {
            get
            {
                return DefaultCacheCapabilities.None;
            }
        }

        // Method called when a cache item is added.
        // Must return the old value
        public override CacheItem<T> AddOrGetExisting<T>(CacheItem<T> item, CacheItemPolicy policy)
        {
            if (item == null)
                throw new ArgumentNullException("item");

            // Resolve the key, remember, we do not have regions
            var resolvedKey = ResolveKey(item.RegionName, item.Key);

            CacheItem<T> oldItem = null;

            // Try to get the old value
            if (Contains(item.Key, item.RegionName))
            {
                var oldValue = GetFromCache<T>(item.RegionName, item.Key);
                oldItem = new CacheItem<T>(item.Key, (T)oldValue.Result, item.RegionName);
            }

            // Set the new data
            AddToCache(item, policy);

            // Return old item
            return oldItem;
        }

        public override CacheItem<T> GetCacheItem<T>(string key, string regionName)
        {
            // If we have an item with this key, return it. Otherwise, return null

            var resolvedKey = ResolveKey(regionName, key);

            CacheItem<T> item = null;

            if (Contains(key, regionName))
            {
                var itemValue = GetFromCache<T>(regionName, key);
                item = new CacheItem<T>(key, (T)itemValue.Result, regionName);
            }


            return item;
        }

        // Check if they key is in the S3 bucket
        public override bool Contains(string key, string regionName)
        {
            var resolvedKey = ResolveKey(regionName, key);
            if (currentCacheObjectListDict.ContainsKey(regionName))
            {
                currentCacheObjectListDict.TryGetValue(regionName, out var valsArray);
                return valsArray.Contains(resolvedKey);
            }
            else
            {
                if (fileExists(resolvedKey).Result)
                {
                    if(!TryGetCurrentCache(regionName).Result)
                        currentCacheObjectListDict[regionName] = new string[0];
                     return true;
                }
                else
                {
                    return false;
                }
            }
        }

        public async Task<bool> TryGetCurrentCache(string regionName)
        {
            try
            {
                var request = new ListObjectsV2Request
                {
                    BucketName = _bucketName,
                    Prefix = regionName
                };

                Console.WriteLine("--------------------------------------");
                Console.WriteLine($"Listing the contents of {_bucketName}:");
                Console.WriteLine("--------------------------------------");

                ListObjectsV2Response response;


                    response = await _client.ListObjectsV2Async(request);

                    response.S3Objects
                        .ForEach(obj => TryAddToDict(regionName, obj.Key));

                    // If the response is truncated, set the request ContinuationToken
                    // from the NextContinuationToken property of the response.
                    request.ContinuationToken = response.NextContinuationToken;

                return true;

            }
            catch
            {
                return false;
            }
        }

        public override bool UpdateCacheItem<T>(CacheItem<T> item)
        {
            // Update the item

            if (item == null)
                throw new ArgumentNullException("item");

            var resolvedKey = ResolveKey(item.RegionName, item.Key);
            var exists = Contains(item.Key, item.RegionName);
            if (exists)
                AddToCache(item, null);
            return exists;
        }

        public override T Remove<T>(string key, string regionName)
        {
            // Removed if exists, return old value
            T existingValue = default(T);
            var resolvedKey = ResolveKey(regionName, key);

            if (Contains(key, regionName))
            {

                existingValue = (T)GetFromCache<T>(regionName, key).Result;
            }

            DeleteItem(key, regionName);
            return existingValue;
        }

        public override async void DeleteItem(string key, string regionName)
        {
            var resolvedKey = ResolveKey(regionName, key);
            //Remove if exists
            await _client.DeleteObjectAsync(_bucketName, resolvedKey);
        }

        private static string ResolveKey(string regionName, string key)
        {
            // Both must me non-empty strings
            if (string.IsNullOrEmpty(regionName)) throw new InvalidOperationException("Region name must be a none empty string");
            if (string.IsNullOrEmpty(key)) throw new InvalidOperationException("Region key name must be a none empty string");

            // We are a simple dictionary with no grouping. regionName might not be unique, key might not be unique, but combine them
            // and we are guaranteed a unique key
            return regionName + "/" + regionName + "-" + key;
        }

        private void AddToCache<T>(CacheItem<T> item, CacheItemPolicy policy)
        {
            // JSON serialize it
            var json = JsonConvert.SerializeObject(item.Value);

            // If the sliding expiration is used, make it the absolute value
            TimeSpan? expiry = null;

            if (policy != null)
            {
                var expiryDate = policy.AbsoluteExpiration;
                if (policy.SlidingExpiration > TimeSpan.Zero)
                {
                    expiryDate = DateTime.UtcNow.Add(policy.SlidingExpiration);
                }
                var br = expiryDate;

                // Now, we have a date, convert it to time span from now (all UTC)
                expiry = (TimeSpan)expiryDate.Subtract(DateTime.UtcNow);
            }

            var resolvedKey = ResolveKey(item.RegionName, item.Key);



            PutObjectRequest request = new PutObjectRequest
            {
                BucketName = _bucketName,
                Key = resolvedKey,
            };
            using (MemoryStream stream = new MemoryStream())
            {
                using (StreamWriter writer = new StreamWriter(stream))
                {
                    writer.Write(json);
                    writer.Flush();
                    stream.Position = 0;
                    request.InputStream = stream;
                    AddToCacheAsync(request).Wait();
                }
            }

            TryAddToDict(item.RegionName, resolvedKey);
        }

        private async Task<object> GetFromCache<T>(string regionName, string key)
        {
            var typeOfT = typeof(T);
            object result = null;
            var resolvedKey = ResolveKey(regionName, key);
            var response = await _client.GetObjectAsync(_bucketName, resolvedKey);
            using (var reader = new StreamReader(response.ResponseStream))
            {
                var fileContents = reader.ReadToEnd();
                result = JsonConvert.DeserializeObject<T>(fileContents);
            }

            return result;
        }

        private void TryAddToDict(string regionName, string resolvedKey)
        {
            currentCacheObjectListDict.TryGetValue(regionName, out var valArray);
            if (valArray == null)
            {
                currentCacheObjectListDict[regionName] = new string[0];
                currentCacheObjectListDict.TryGetValue(regionName, out var valArray2);
                currentCacheObjectListDict[regionName] = valArray2.Append<string>(resolvedKey).ToArray();
            }
            else if (!valArray.Contains(resolvedKey))
                currentCacheObjectListDict[regionName] = valArray.Append<string>(resolvedKey).ToArray();
        }

        private async Task AddToCacheAsync(PutObjectRequest request)
        {
            await _client.PutObjectAsync(request);
        }

        public void removeCurrentKeyFromLocalCache(string id)
        {
            currentCacheObjectListDict.Remove(id);
        }

        public override void UpdatePolicy(string key, CacheItemPolicy policy, string regionName)
        {
            // Nothing to do
        }

        //Add fuctions that are important for the .Net 6 implementation of the S3BucketCache

        public async Task<bool> fileExists(string resolvedKey)
        {

            try
            {
                // you provide the s3Client in your call, or create a new one
                await _client.GetObjectMetadataAsync(_bucketName, resolvedKey);

                return true;
            }
            catch (Exception ex)
            {
                return false;

                throw;
            }
        }

        //
        // These members must be over implemented by our class but are never called by the Documents toolkit
        // So just throw a not supported exception
        //

        // This is for default region support. We do not have that
        public override object this[string key]
        {
            get
            {
                throw new NotSupportedException();
            }
            set
            {
                throw new NotSupportedException();
            }
        }

        // Delete a region in one shot. We do not support that
        // Note: This is only called if we have DefaultCacheCapabilities.CacheRegions. Since we do not, the caller is responsible for
        // calling DeleteAll passing all the items of the region (which in turn will call DeleteItem for each)
        public override void DeleteRegion(string regionName)
        {
            throw new NotSupportedException();
        }

        // Begin adding an external resource. We do not support that
        // Note: This is only called if we have DefaultCacheCapabilities.ExternalResources
        public override Uri BeginAddExternalResource(string key, string regionName, bool readWrite)
        {
            throw new NotSupportedException();
        }

        // End adding an external resource. We do not support that
        // Note: This is only called if we have DefaultCacheCapabilities.ExternalResources
        public override void EndAddExternalResource<T>(bool commit, string key, T value, CacheItemPolicy policy, string regionName)
        {
            throw new NotSupportedException();
        }

        // Get the item external resource. We do not support that
        // Note: This is only called if we have DefaultCacheCapabilities.ExternalResources
        public override Uri GetItemExternalResource(string key, string regionName, bool readWrite)
        {
            throw new NotSupportedException();
        }

        // Remove the item external resource. We do not support that
        // Note: This is only called if we have DefaultCacheCapabilities.ExternalResources
        public override void RemoveItemExternalResource(string key, string regionName)
        {
            throw new NotSupportedException();
        }

        // Get the item virtual directory path. We do not support that
        // Note: This is only called if we have DefaultCacheCapabilities.VirtualDirectory
        public override Uri GetItemVirtualDirectoryUrl(string key, string regionName)
        {
            throw new NotSupportedException();
        }

        // Getting number of items in the cache. We do not support that
        public override long GetCount(string regionName)
        {
            throw new NotSupportedException();
        }

        // Statistics. We do not support that
        public override CacheStatistics GetStatistics()
        {
            throw new NotSupportedException();
        }

        // Statistics. We do not support that
        public override CacheStatistics GetStatistics(string key, string regionName)
        {
            throw new NotSupportedException();
        }

        // Getting all the values. We do not support that
        public override IDictionary<string, object> GetValues(IEnumerable<string> keys, string regionName)
        {
            throw new NotSupportedException();
        }

        // Enumeration of the items. We do not support that
        protected override IEnumerator<KeyValuePair<string, object>> GetEnumerator()
        {
            throw new NotSupportedException();
        }


        // Enumeration of the keys. We do not support that
        public override void EnumerateKeys(string region, EnumerateCacheEntriesCallback callback)
        {
            throw new NotSupportedException();
        }

        // Enumeration of regions. We do not support that
        public override void EnumerateRegions(EnumerateCacheEntriesCallback callback)
        {
            throw new NotSupportedException();
        }
    }
}

Create the Cache Manager

Unlike the offline Document Viewer, the Document Service needs a cache manager to implement a cache.

In the Solution Explorer, right-click DocumentService project file, and select Add -> New Item. Create a new Class. Name your new class S3BucketCacheManager.cs and press Add.

Open the S3BucketCacheManager.cs file and add the below code to create the S3BucketCacheManager class.

C#
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Xml.Linq;

using Amazon;
using Amazon.S3;

using Leadtools.Caching;
using Leadtools.Document;
using Leadtools.Services.Tools.Helpers;

namespace Leadtools.Services.Tools.Cache
{

    public class S3CacheManager : ICacheManager
    {
        // Our cache
        private ObjectCache _objectCache;
        private CacheItemPolicy _cacheItemPolicy;
        private bool _isInitialized = false;
        public string WebRootPath { get; set; }

        // Its name
        public const string CACHE_NAME = "S3BucketCache";

        public S3CacheManager(string WebRootPath, XElement cacheManagerElement)
        {
            if (string.IsNullOrEmpty(WebRootPath))
                throw new ArgumentNullException(nameof(WebRootPath));

            _isInitialized = false;
            this.WebRootPath = WebRootPath;

            // Get the values from the XML document
            ParseXml(cacheManagerElement);
        }

        public void ParseXml(XElement cacheManagerElement)
        {
            // Nothing to parse
        }

        private const string CACHE_MANAGER_NAME = "S3CacheManger";
        public string Name
        {
            get { return CACHE_MANAGER_NAME; }
        }

        public string[] GetCacheNames()
        {
            return new string[] { CACHE_NAME };
        }

        public bool IsInitialized
        {
            get { return _isInitialized; }
        }

        public void Initialize()
        {
            Trace.WriteLine("Initializing default cache from configuration");

            if (_isInitialized)
                throw new InvalidOperationException("Cache already initialized");

            _objectCache = InitializeS3BucketCache();
            _objectCache.SetName(CACHE_NAME);
            if (_objectCache.Name != CACHE_NAME)
                throw new InvalidOperationException($"ObjectCache implementation {_objectCache.GetType().FullName} does not override SetName");

            DocumentFactory.LoadDocumentFromCache += LoadDocumentFromCacheHandler;
            _cacheItemPolicy = InitializePolicy(_objectCache);
            _isInitialized = true;
        }

        private void LoadDocumentFromCacheHandler(object sender, ResolveDocumentEventArgs e)
        {
            // Get the cache for the document if we have it
            ObjectCache objectCache = GetCacheForDocument(e.LoadFromCacheOptions.DocumentId);
            if (objectCache != null)
                e.LoadFromCacheOptions.Cache = objectCache;
        }

        public void Cleanup()
        {
            if (!_isInitialized)
                return;

            _objectCache = null;
            _cacheItemPolicy = null;
            _isInitialized = false;
        }

        private ObjectCache InitializeS3BucketCache()
        {
            // Called by InitializeService the first time the service is run
            // Initialize the global Cache object

            string cacheConfigFile = ServiceHelper.GetSettingValue(ServiceHelper.Key_Cache_ConfigFile);
            cacheConfigFile = ServiceHelper.GetAbsolutePath(cacheConfigFile);
            if (string.IsNullOrEmpty(cacheConfigFile))
                throw new InvalidOperationException($"The cache configuration file location in '{ServiceHelper.Key_Cache_ConfigFile}' in the configuration file is empty");

            ObjectCache objectCache = null;

            // Set the base directory of the cache (for resolving any relative paths) to this project's path
            var additional = new Dictionary<string, string>();
            additional.Add(ObjectCache.BASE_DIRECTORY_KEY, WebRootPath);

            try
            {
                //TODO Setup Connections
                string awsAccessKeyId = "AWS_ACCESS_KEY"; //Update with Access Key
                string awsSecretAccessKey = "AWS_SECRET_ACCESS_KEY"; //Update with Secret Access Key
                RegionEndpoint region = RegionEndpoint.USEast1; //Update to match a region where your S3 buckets are accessible.
                AmazonS3Client client = new AmazonS3Client(awsAccessKeyId, awsSecretAccessKey, region);
                string bucketName = "leadtoolstestbucket";

                objectCache = new S3BucketCache(client, bucketName);
            }
            catch (Exception ex)
            {
                throw new InvalidOperationException($"Cannot load cache configuration from '{cacheConfigFile}'", ex);
            }

            return objectCache;
        }

        public static CacheItemPolicy InitializePolicy(ObjectCache objectCache)
        {
            var policy = new CacheItemPolicy();
            return policy;
        }

        private static void VerifyCacheName(string cacheName, bool allowNull)
        {
            if (cacheName == null && allowNull)
                return;

            if (CACHE_NAME != cacheName)
                throw new ArgumentException($"Invalid cache name: {cacheName}", nameof(cacheName));
        }

        public void CheckCacheAccess(string cacheName)
        {
            Console.WriteLine("Made it to check!");
            CacheItemPolicy policy = null;
        }

        public CacheItemPolicy CreatePolicy(string cacheName)
        {
            VerifyCacheName(cacheName, false);

            return _cacheItemPolicy.Clone();
        }

        public CacheItemPolicy CreatePolicy(ObjectCache objectCache)
        {
            // Get the name of this cache
            string cacheName = GetCacheName(objectCache);
            if (cacheName == null)
                throw new InvalidOperationException("Invalid object cache");

            return CreatePolicy(cacheName);
        }

        public CacheStatistics GetCacheStatistics(string cacheName)
        {
            return null;
        }

        public void RemoveExpiredItems(string cacheName)
        {
            VerifyCacheName(cacheName, true);

            // Only supported by FileCache
            FileCache fileCache = _objectCache as FileCache;
            if (fileCache != null)
            {
                fileCache.CheckPolicies();
            }
        }

        public ObjectCache DefaultCache
        {
            get { return _objectCache; }
        }

        public ObjectCache GetCacheByName(string cacheName)
        {
            VerifyCacheName(cacheName, false);
            return _objectCache;
        }

        public string GetCacheName(ObjectCache objectCache)
        {
            if (objectCache == null)
                throw new ArgumentNullException(nameof(objectCache));

            if (objectCache == _objectCache)
                return CACHE_NAME;

            return null;
        }

        public ObjectCache GetCacheForDocument(string documentId)
        {
            if (documentId == null)
                throw new ArgumentNullException(nameof(documentId));

            return _objectCache;
        }

        public ObjectCache GetCacheForDocumentOrDefault(string documentId)
        {
            ObjectCache objectCache = null;

            if (!string.IsNullOrEmpty(documentId))
            {
                objectCache = GetCacheForDocument(documentId);
            }

            if (objectCache == null)
                objectCache = DefaultCache;

            return objectCache;
        }

        public ObjectCache GetCacheForDocument(Uri documentUri)
        {
            if (documentUri == null)
                throw new ArgumentNullException(nameof(documentUri));

            // Get the document ID from the URI and call the other version of this function
            if (!DocumentFactory.IsUploadDocumentUri(documentUri))
                throw new ArgumentException($"{documentUri.ToString()} is not a valid LEAD document URI", nameof(documentUri));

            string documentId = DocumentFactory.GetLeadCacheData(documentUri);
            return GetCacheForDocument(documentId);
        }

        public ObjectCache GetCacheForDocumentOrDefault(Uri documentUri)
        {
            ObjectCache objectCache = null;

            if (documentUri != null)
            {
                objectCache = GetCacheForDocument(documentUri);
            }

                if (objectCache == null)
                    objectCache = DefaultCache;

            return objectCache;
        }

        public ObjectCache GetCacheForLoadFromUri(Uri uri, LoadDocumentOptions loadDocumentOptions)
        {
            return _objectCache;
        }

        public ObjectCache GetCacheForBeginUpload(UploadDocumentOptions uploadDocumentOptions)
        {
            return _objectCache;
        }

        public ObjectCache GetCacheForCreate(CreateDocumentOptions createDocumentOptions)
        {
            return _objectCache;
        }
    }
}

Update the InitializeS3BucketCache() method with your AWS Key and AWS Secret Key. For more information on setting Keys with the AWSSK3, consult the AWS documentation.

Note that this method of setting the credentials is only an example and you should use your credentials in a safe way that does not leave your access keys exposed.

C#
private ObjectCache InitializeS3BucketCache()
{
    // Called by InitializeService the first time the service is run
    // Initialize the global Cache object

    string cacheConfigFile = ServiceHelper.GetSettingValue(ServiceHelper.Key_Cache_ConfigFile);
    cacheConfigFile = ServiceHelper.GetAbsolutePath(cacheConfigFile);
    if (string.IsNullOrEmpty(cacheConfigFile))
        throw new InvalidOperationException($"The cache configuration file location in '{ServiceHelper.Key_Cache_ConfigFile}' in the configuration file is empty");

    ObjectCache objectCache = null;

    // Set the base directory of the cache (for resolving any relative paths) to this project's path
    var additional = new Dictionary<string, string>();
    additional.Add(ObjectCache.BASE_DIRECTORY_KEY, WebRootPath);

    try
    {
        //TODO Setup Connections
        string awsAccessKeyId = "AWS_ACCESS_KEY"; //Update with Access Key
        string awsSecretAccessKey = "AWS_SECRET_ACCESS_KEY"; //Update with Secret Access Key
        RegionEndpoint region = RegionEndpoint.USEast1; //Update to match a region where your S3 buckets are accessible.
        AmazonS3Client client = new AmazonS3Client(awsAccessKeyId, awsSecretAccessKey, region);
        string bucketName = "leadtoolstestbucket";

        objectCache = new S3BucketCache(client, bucketName);
    }
    catch (Exception ex)
    {
        throw new InvalidOperationException($"Cannot load cache configuration from '{cacheConfigFile}'", ex);
    }

    return objectCache;
}

Set the Cache in the Document Service

In the Solution Explorer, open the ServiceHelper.cs file. Update the CreateCache function to use the S3BucketCacheManager.

C#
public static void CreateCache()
{
   // Called by InitializeService the first time the service is run
   // Initialize the global ICacheManager object
   //ICacheManager cacheManager = null;
   S3BucketCacheManager cacheManager = new S3BucketCacheManager(WebRootPath, null);
   // See if we have a CacheManager configuration file
   /*string cacheManagerConfigFile = GetSettingValue(Key_Cache_CacheManagerConfigFile);
   cacheManagerConfigFile = GetAbsolutePath(cacheManagerConfigFile);
   if (!string.IsNullOrEmpty(cacheManagerConfigFile))
   {
      using (var stream = File.OpenRead(cacheManagerConfigFile))
      cacheManager = CacheManagerFactory.CreateFromConfiguration(stream, WebRootPath);
   }
   else
   {
      // Try to create the default ICacheManager directly (backward compatibility)
      cacheManager = new DefaultCacheManager(WebRootPath, null);
   }
   */
   if (cacheManager == null)
      throw new InvalidOperationException("Could not find a valid LEADTOOLS cache system configuration.");
   cacheManager.Initialize();
   _cacheManager = cacheManager;
}

Add Code to Maintain the Internal S3ObjectCache Temporary Cache

Our S3BucketCache takes advantage of a memory cache to prevent excess calls to the server to see if a. In order to help reserve resources we need to take advantage of the removeCurrentKeyFromLocalCache() function that we created in the S3BucketCache class.

In the FactoryController.cs file, navigate to the LoadFromCache() function and add the following code right before the return statement:

C#
if(document != null)
{
    S3BucketCache s3cache = cache as S3BucketCache;
    cache2.removeCurrentKeyFromLocalCache(document.DocumentId);
}

In the CacheController.cs file, navigate to the GetDocumentData() function and add the followwing code right above the return statement:

C#
S3BucketCache s3 = cache as S3BucketCache;

cache2.removeCurrentKeyFromLocalCache(document.DocumentId);

In the AnnotationsHelper.cs file, navigate to the GetAnnotations() function and add the following code right above the return statement:

C#
S3BucketCache s3Cache = cache as S3BucketCache;

s3Cache.removeCurrentKeyFromLocalCache(document.DocumentId);

Run the Project

To run the project, press F5 or select Debug -> Start Debugging.

If the steps were followed correctly, the application should open two web browsers, one for the Document Service and one for the Document Viewer.

You can see the contents of the cache by using the AWS Portal, and looking at your S3 Bucket being used by the cache. Below are some examples of the contents you can expect to see in the S3 Bucket.

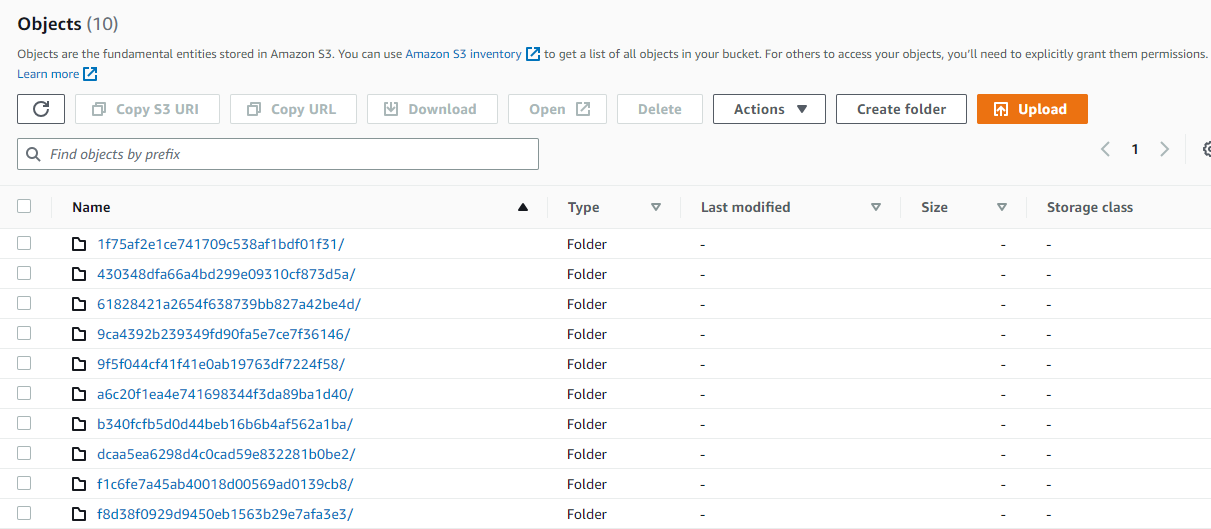

Example of the Base Directory for a S3 Bucket Cache

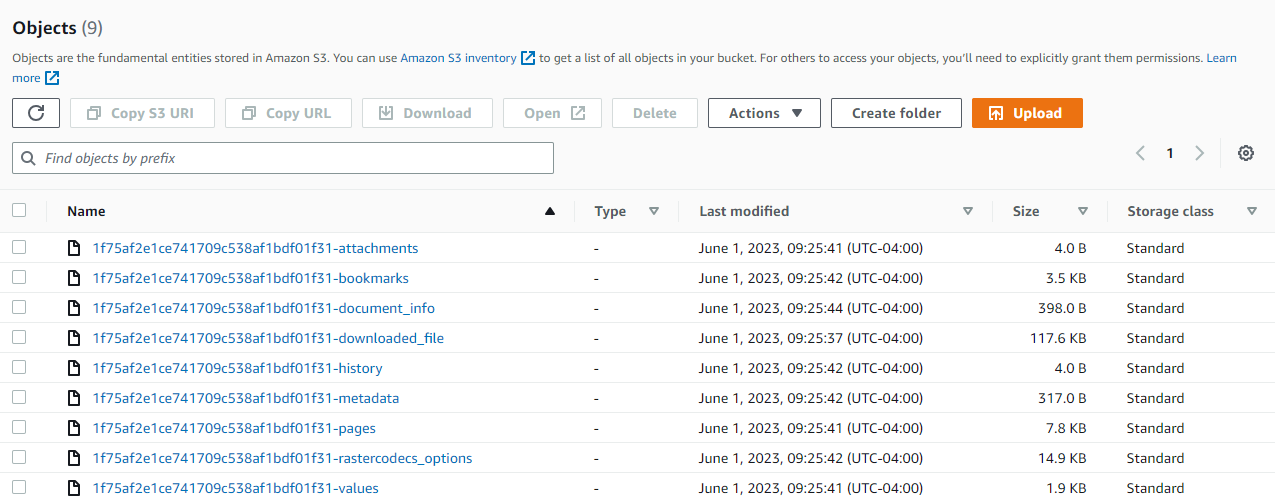

Example of the Directory for a Document Stored in a S3 Bucket Cache

For your reference, you can download the S3BucketCache.cs and S3BucketCacheManager.cs files here

Wrap-up

This tutorial showed how to set up an AWS S3 Bucket Cache to use with the LEADTOOLS .NET 6+ Document Service and HTML5/JS Document Viewer.

See Also

Help Version 23.0.2024.4.23
Products | Support | Contact Us | Intellectual Property Notices
© 1991-2024 LEAD Technologies, Inc. All Rights Reserved.


Products | Support | Contact Us | Intellectual Property Notices
© 1991-2023 LEAD Technologies, Inc. All Rights Reserved.
