Viewing an Image

Perform the following steps to view an image:

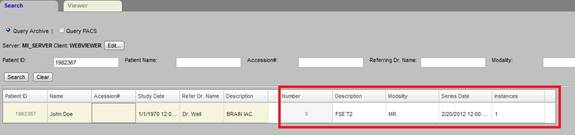

1.  Click the Search tab.

2.  Select either the Query Archive or the Query PACS button. If you select the Query PACS button also select the server that you would like to query.

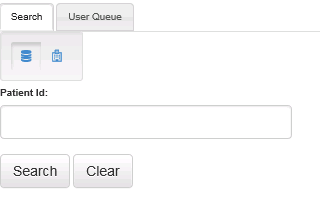

3.  Enter the search criteria to search for a patient. You can search by Patient ID, Patient Name, Accession Number, Referring Dr. Name, or Modality.

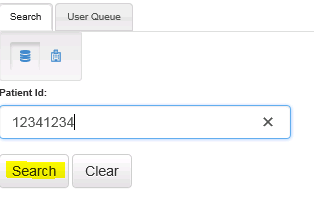

4.  Click Search.

5.  Select the Patient whose images you want to view.

6.  Select the series to view. Selecting a series opens the Viewer tab and loads the images into the viewer.

Selecting an Image
