FreePlaneBendCommand Class
See Also  Members   Example
Leadtools.ImageProcessing.SpecialEffects Namespace : FreePlaneBendCommand Class



Wraps the image onto a 3D plane shaped by Curve. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class FreePlaneBendCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage) Copy Code
Dim instance As FreePlaneBendCommand
C#
public class FreePlaneBendCommand : RasterCommand, IRasterCommand
C++/CLI
public ref class FreePlaneBendCommand : public RasterCommand, IRasterCommand

Example

Run the FreePlaneBendCommand on an image.

Visual Basic Copy Code
Public Sub FreePlaneBendCommandExample()
   RasterCodecs.Startup()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg")

   ' Prepare the command
   Dim command As FreePlaneBendCommand = New FreePlaneBendCommand
   Dim UserPoint() As Point
   ReDim UserPoint(3)

   Dim Curve() As Integer
   ReDim Curve(12)

   'Apply the filter
   UserPoint(0).X = 0
   UserPoint(0).Y = 0
   UserPoint(1).X = 3
   UserPoint(1).Y = 10
   UserPoint(2).X = 9
   UserPoint(2).Y = -10
   UserPoint(3).X = 12
   UserPoint(3).Y = 0

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear)
   command.Flags = FreePlaneBendCommandFlags.Color Or FreePlaneBendCommandFlags.Vertical
   command.Scale = 200
   command.FillColor = New RasterColor(255, 0, 0)
   command.Curve = Curve
   command.Run(leadImage)
   codecs.Save(leadImage, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24)

   RasterCodecs.Shutdown()
End Sub
C# Copy Code
public void FreePlaneBendCommandExample()

   // Load an image
   RasterCodecs.Startup();
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg");

   // Prepare the command
   FreePlaneBendCommand command = new FreePlaneBendCommand();
   System.Drawing.Point[] UserPoint = new System.Drawing.Point[4];
   int[] Curve = new int[13];

   //Apply the filter
   UserPoint[0].X = 0;
   UserPoint[0].Y = 0;
   UserPoint[1].X = 3;
   UserPoint[1].Y = 10;
   UserPoint[2].X = 9;
   UserPoint[2].Y = -10;
   UserPoint[3].X = 12;
   UserPoint[3].Y = 0;

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear);
   for(int i = 0; i < Curve.Length; i++)
      Curve[i] /= 50;
   command.Flags = FreePlaneBendCommandFlags.Color | FreePlaneBendCommandFlags.Vertical;
   command.Scale = 200;
   command.FillColor = new RasterColor(255, 0, 0);
   command.Curve = Curve;
   command.Run(image);
   codecs.Save(image, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24);

   RasterCodecs.Shutdown();
}

Remarks

  • If the image has a region, the effect will be applied on the region only.

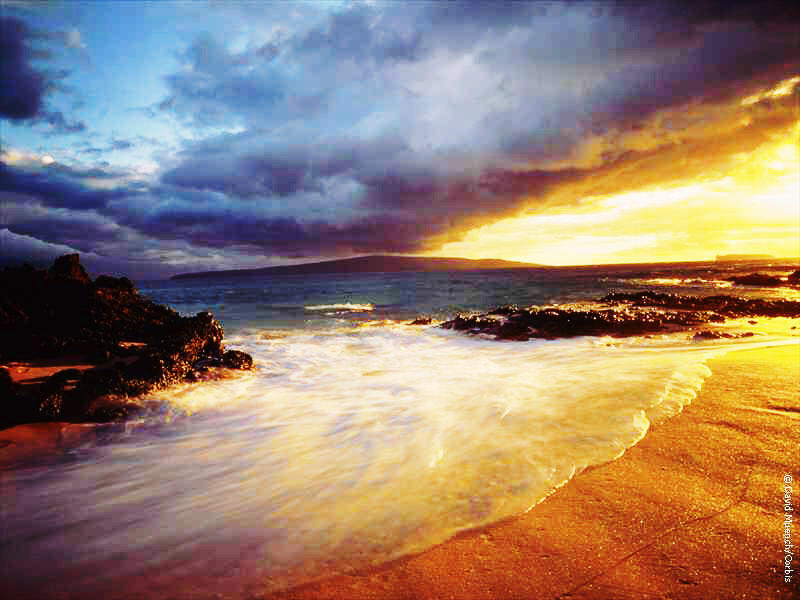

  • For an example, the following figure shows an image before the effect is applied.

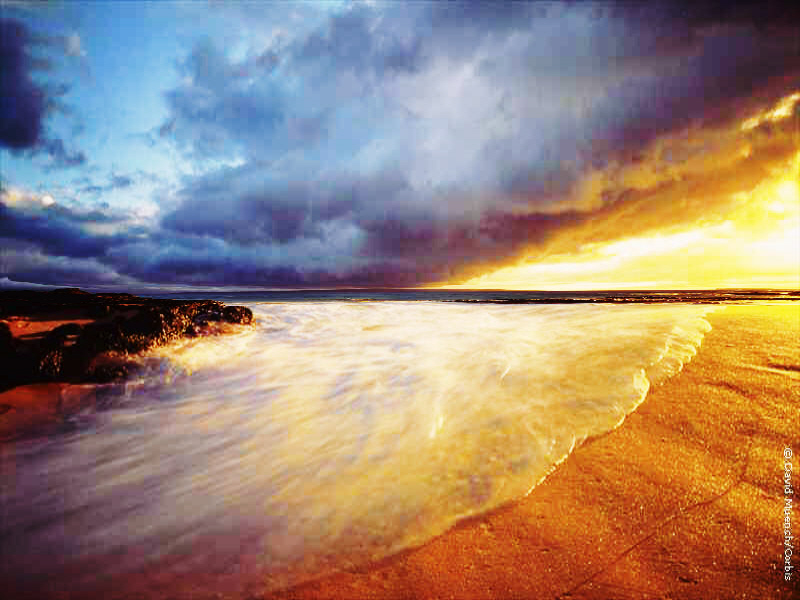

    The following figure shows the same image after the effect has been applied.
  • This command supports 12- and 16-bit grayscale and 48- and 64-bit color images. Support for 12- and 16-bit grayscale and 48- and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.

Inheritance Hierarchy

System.Object
   Leadtools.ImageProcessing.RasterCommand
      Leadtools.ImageProcessing.SpecialEffects.FreePlaneBendCommand

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
