RasterWindowLevelDialog Class

Summary
Displays the Window Level dialog box.
Syntax
C#
VB
C++
public class RasterWindowLevelDialog : Form

Public Class RasterWindowLevelDialog
   Inherits System.Windows.Forms.Form
   Implements System.ComponentModel.IComponent, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IContainerControl, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window
public ref class RasterWindowLevelDialog : public System.Windows.Forms.Form, System.ComponentModel.IComponent, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IContainerControl, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window
Remarks

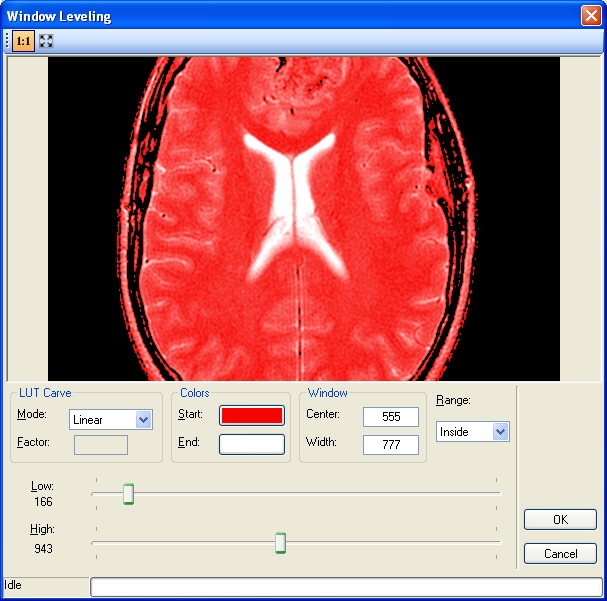

The Window Level dialog can be seen below:

Example
C#
VB
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;
using Leadtools.WinForms.CommonDialogs.Color;

public void windowLevelDlg_Help(object sender, RasterColorDialogHelpEventArgs e)
{
   if (e.Dialog == RasterColorDialogHelpName.WindowLevel)
   {
      MessageBox.Show("Window Level dialog Help");
   }
}

public void WindowLevelDialogExample()
{
   // initialize the RasterCodecs
   RasterCodecs codecs = new RasterCodecs();

   // load an image
   RasterImage rasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Beauty16.jpg"));

   int size;
   RasterWindowLevelDialog windowLevelDlg = new RasterWindowLevelDialog();
   MinMaxBitsCommand minMaxBitsCmd = new MinMaxBitsCommand();
   MinMaxValuesCommand minMaxValuesCmd = new MinMaxValuesCommand();

   size = (1 << (rasterImage.HighBit - rasterImage.LowBit + 1));

   minMaxBitsCmd.Run(rasterImage);
   windowLevelDlg.LowBit = minMaxBitsCmd.MinimumBit;
   windowLevelDlg.HighBit = minMaxBitsCmd.MaximumBit;

   minMaxValuesCmd.Run(rasterImage);
   windowLevelDlg.Low = minMaxValuesCmd.MinimumValue;
   windowLevelDlg.High = minMaxValuesCmd.MaximumValue;

   windowLevelDlg.AutoProcess = false;
   windowLevelDlg.Factor = 0;
   windowLevelDlg.Image = rasterImage;
   windowLevelDlg.ZoomToFit = true;
   windowLevelDlg.ShowPreview = true;
   windowLevelDlg.ShowZoomLevel = true;
   windowLevelDlg.ShowHelp = false;
   windowLevelDlg.ShowRange = true;
   windowLevelDlg.Signed = rasterImage.Signed;
   windowLevelDlg.LookupTable = new Leadtools.RasterColor[size];
   windowLevelDlg.StartColor = new Leadtools.RasterColor(0, 0, 0);
   windowLevelDlg.EndColor = new Leadtools.RasterColor(255, 255, 255);
   windowLevelDlg.WindowLevelFlags = Leadtools.RasterPaletteWindowLevelFlags.Inside | Leadtools.RasterPaletteWindowLevelFlags.Linear;
   windowLevelDlg.Help += new EventHandler<RasterColorDialogHelpEventArgs>(windowLevelDlg_Help);


   if (DialogResult.OK == windowLevelDlg.ShowDialog(null))
   {
      WindowLevelCommand command = new WindowLevelCommand();

      command.HighBit = windowLevelDlg.HighBit;
      command.LowBit = windowLevelDlg.LowBit;
      command.LookupTable = windowLevelDlg.LookupTable;
      command.Order = Leadtools.RasterByteOrder.Bgr;

      command.Run(rasterImage);
   }

   // save the resulted image
   codecs.Save(rasterImage, Path.Combine(LEAD_VARS.ImagesDir, "WindowLevelDialogResult.bmp"), RasterImageFormat.Bmp, 24);
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Core
Imports Leadtools.WinForms.CommonDialogs.Color

Public Sub windowLevelDlg_Help(sender As Object, e As RasterColorDialogHelpEventArgs)
   If e.Dialog = RasterColorDialogHelpName.WindowLevel Then
      MessageBox.Show("Window Level dialog Help")
   End If
End Sub

WithEvents _windowLevleDlg As New RasterWindowLevelDialog
Public Sub WindowLevelDialogExample()
   ' initialize the RasterCodecs
   Dim codecs As New RasterCodecs()

   ' load an image
   Dim rasterImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\Beauty16.jpg"))

   Dim size As Integer
   Dim windowLevelDlg As New RasterWindowLevelDialog()
   Dim minMaxBitsCmd As New MinMaxBitsCommand()
   Dim minMaxValuesCmd As New MinMaxValuesCommand()

   size = (1 << (rasterImage.HighBit - rasterImage.LowBit + 1))

   minMaxBitsCmd.Run(rasterImage)
   windowLevelDlg.LowBit = minMaxBitsCmd.MinimumBit
   windowLevelDlg.HighBit = minMaxBitsCmd.MaximumBit

   minMaxValuesCmd.Run(rasterImage)
   windowLevelDlg.Low = minMaxValuesCmd.MinimumValue
   windowLevelDlg.High = minMaxValuesCmd.MaximumValue

   windowLevelDlg.AutoProcess = False
   windowLevelDlg.Factor = 0
   windowLevelDlg.Image = rasterImage
   windowLevelDlg.ZoomToFit = True
   windowLevelDlg.ShowPreview = True
   windowLevelDlg.ShowZoomLevel = True
   windowLevelDlg.ShowHelp = False
   windowLevelDlg.ShowRange = True
   windowLevelDlg.Signed = rasterImage.Signed
   windowLevelDlg.LookupTable = New Leadtools.RasterColor(size - 1) {}
   windowLevelDlg.StartColor = New Leadtools.RasterColor(0, 0, 0)
   windowLevelDlg.EndColor = New Leadtools.RasterColor(255, 255, 255)
   windowLevelDlg.WindowLevelFlags = Leadtools.RasterPaletteWindowLevelFlags.Inside Or Leadtools.RasterPaletteWindowLevelFlags.Linear
   AddHandler windowLevelDlg.Help, AddressOf windowLevelDlg_Help


   If DialogResult.OK = windowLevelDlg.ShowDialog(Nothing) Then
      Dim command As New WindowLevelCommand()

      command.HighBit = windowLevelDlg.HighBit
      command.LowBit = windowLevelDlg.LowBit
      command.LookupTable = windowLevelDlg.LookupTable
      command.Order = Leadtools.RasterByteOrder.Bgr

      command.Run(rasterImage)
   End If

   ' save the resulted image
   codecs.Save(rasterImage, Path.Combine(LEAD_VARS.ImagesDir, "WindowLevelDialogResult.bmp"), RasterImageFormat.Bmp, 24)
End Sub


Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\LEADTOOLS22\Resources\Images"
End Class
Requirements

Target Platforms

Help Version 22.0.2021.8.20
