HighPassCommand Class

Summary

Removes low frequency details in an image, resulting in a sharpened image.

Syntax

C#
VB
Java
Objective-C
WinRT C#
C++
public class HighPassCommand : RasterCommand
@interface LTHighPassCommand : LTRasterCommand
public class HighPassCommand extends RasterCommand
function Leadtools.ImageProcessing.Effects.HighPassCommand()

Remarks
  • This command removes low-frequency detail in the image. The method is opposite to that of the Gaussian Blur method
  • To increase the thickness of the edges, increase the value of radius. Usually a low value for radius is better.
  • Unlike the UnsharpMaskCommand, when using this command, the low frequency features are removed from the image.
  • As an example, if you use the following image: And you were to call HighPassCommand using the following settings:
Parameter Value
Radius 6
Opacity 100

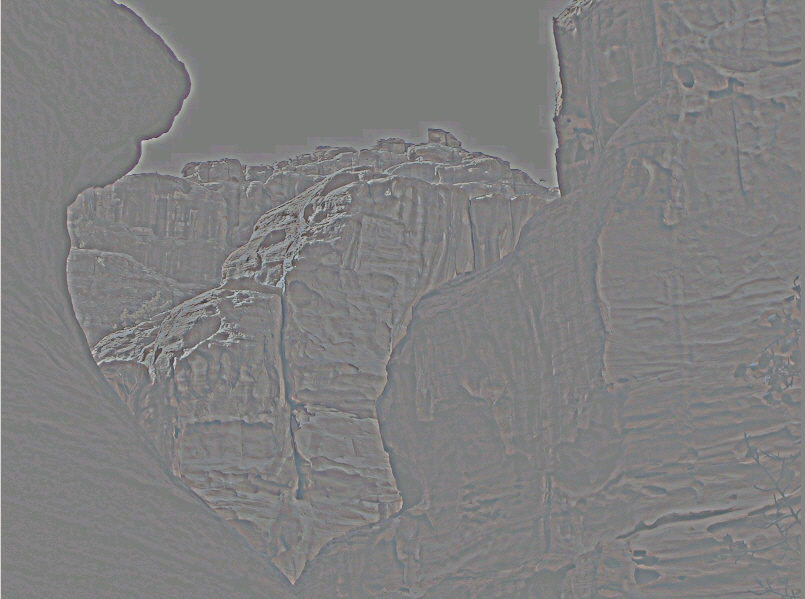

The following figure results:
  • If the image has a region, the command will be applied on the region only.
  • This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.

Example

Run the HighPassCommand on an image and applies the HighPass filter.

C#
VB
Silverlight C#
Silverlight VB
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;

public void HighPassCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   HighPassCommand command = new HighPassCommand();
   command.Radius = 6;
   command.Opacity = 100;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Effects
      Leadtools.Examples.Support.SetLicense()

Public Sub HighPassCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim command As HighPassCommand = New HighPassCommand
   command.Radius = 6
   command.Opacity = 100
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;
using Leadtools.Examples;

public void HighPassCommandExample(RasterImage image, Stream outStream)
{
   // Prepare the command
   HighPassCommand command = new HighPassCommand();
   command.Radius = 6;
   command.Opacity = 100;
   command.Run(image);
   // Save result image
   RasterCodecs codecs = new RasterCodecs();
   codecs.Save(image, outStream, RasterImageFormat.Jpeg, 24);
   image.Dispose();
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Effects

Public Sub HighPassCommandExample(ByVal image As RasterImage, ByVal outStream As Stream)
   ' Prepare the command
   Dim command As HighPassCommand = New HighPassCommand()
   command.Radius = 6
   command.Opacity = 100
   command.Run(image)
   ' Save result image
   Dim codecs As RasterCodecs = New RasterCodecs()
   codecs.Save(image, outStream, RasterImageFormat.Jpeg, 24)
   image.Dispose()
End Sub
