BorderRemoveCommand Class

Summary

Removes the black borders in a 1-bit black and white image. This command is available in the Document/Medical Toolkits.

Syntax

Objective-C

C++/CLI

Java

Python

public class BorderRemoveCommand : RasterCommand

@interface LTBorderRemoveCommand : LTRasterCommand

public class BorderRemoveCommand
    extends RasterCommand

public ref class BorderRemoveCommand : public RasterCommand

class BorderRemoveCommand(RasterCommand):

Remarks

This command removes borders that commonly appear in scanned text documents. Any or all of the four borders can be detected and removed. The behavior of this command can be modified by using an Event Handler that handles the BorderRemoveCommandEventArgs.
This command works only on 1-bit black and white images.
If a region is selected, only the selected region will be changed by this command. If no region is selected, the whole image will be processed.
This command does not support signed data images.
This command does not support 32-bit grayscale images.

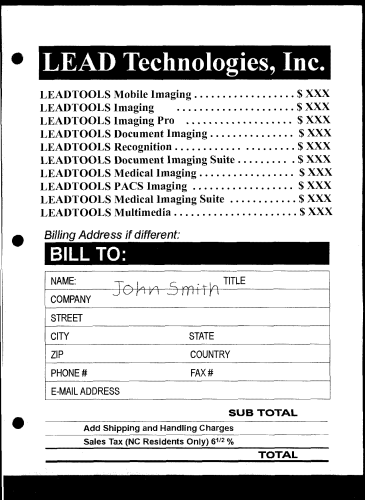

Border Remove Function - Before

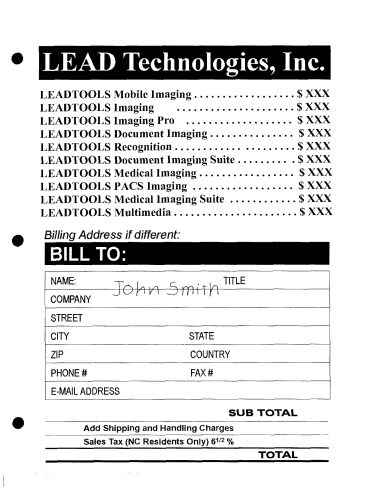

Border Remove Function - After

View additional platform support for this Border Remove function.

Example

Run the BorderRemoveCommand on an image.

Java

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;

public void BorderRemoveCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Clean.tif"));

   // Prepare the command
   BorderRemoveCommand command = new BorderRemoveCommand();
   command.BorderRemove += new EventHandler<BorderRemoveCommandEventArgs>(command_BorderRemove_S1);
   command.Border = BorderRemoveBorderFlags.All;
   command.Flags = BorderRemoveCommandFlags.UseVariance;
   command.Percent = 20;
   command.Variance = 3;
   command.WhiteNoiseLength = 9;

   command.Run(image);

}

private void command_BorderRemove_S1(object sender, BorderRemoveCommandEventArgs e)
{
   string Border;

   switch (e.Border)
   {
      case BorderRemoveBorderFlags.Top:
         Border = "Top";
         break;
      case BorderRemoveBorderFlags.Left:
         Border = "Left";
         break;
      case BorderRemoveBorderFlags.Right:
         Border = "Right";
         break;
      case BorderRemoveBorderFlags.Bottom:
         Border = "Bottom";
         break;
      default:
         Border = "";
         break;
   }
   MessageBox.Show("Bounds " + "( " + e.BoundingRectangle.Left + ", " + e.BoundingRectangle.Top + ") - " + "( " + e.BoundingRectangle.Right + ", " + e.BoundingRectangle.Bottom + ")" + "\n Border " + Border.ToString());
   e.Status = RemoveStatus.Remove;
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}


import java.beans.EventHandler;
import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.core.*;
import leadtools.imageprocessing.color.*;


public void borderRemoveCommandExample() {

   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR,
         "clean.tif"), 1, CodecsLoadByteOrder.BGR, 1, 1);

   // Prepare the command
   BorderRemoveCommand command = new BorderRemoveCommand();
   command.addBorderRemoveCommandListener(command_BorderRemove_S1);
   command.setBorder(BorderRemoveBorderFlags.ALL.getValue());
   command.setFlags(BorderRemoveCommandFlags.USE_VARIANCE.getValue());
   command.setPercent(20);
   command.setVariance(3);
   command.setWhiteNoiseLength(9);

   command.run(image);

   System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "clean.tif"));
   assertTrue(new File(combine(LEAD_VARS_IMAGES_DIR, "clean.tif")).exists());

}

BorderRemoveCommandListener command_BorderRemove_S1 = new BorderRemoveCommandListener() {

   @Override
   public void onBorderRemoveEvent(BorderRemoveCommandEvent e) {
      String Border;

      switch (e.getBorder()) {

         // Top
         case 0x00000004:
            Border = "Top";
            break;

         // Left
         case 0x00000001:
            Border = "Left";
            break;

         // Right
         case 0x00000002:
            Border = "Right";
            break;

         // Bottom
         case 0x00000008:
            Border = "Bottom";
            break;

         default:
            Border = "";
            break;

      }

      System.out.println("Bounds " + "( " + e.getBoundingRectangle().getLeft() + ", "
            + e.getBoundingRectangle().getTop() + ") - " + "( " + e.getBoundingRectangle().getRight() + ", "
            + e.getBoundingRectangle().getBottom() + ")" + "\n Border " + Border);
      e.setStatus(RemoveStatus.REMOVE);

   }

};
