HighPassCommand Class

Summary
Removes low frequency details in an image, resulting in a sharpened image.
Syntax
C#
Objective-C
C++/CLI
Java
Python
public class HighPassCommand : RasterCommand
@interface LTHighPassCommand : LTRasterCommand
public class HighPassCommand
    extends RasterCommand
public ref class HighPassCommand : public RasterCommand
class HighPassCommand(RasterCommand):
Remarks
  • This command removes low-frequency detail in the image. The method is opposite to that of the Gaussian Blur method
  • To increase the thickness of the edges, increase the value of radius. Usually a low value for radius is better.
  • Unlike the UnsharpMaskCommand, when using this command, the low frequency features are removed from the image.
  • As an example, if you use the following image:

    And you were to call HighPassCommand using the following settings:
    Parameter Value
    Radius 6
    Opacity 100

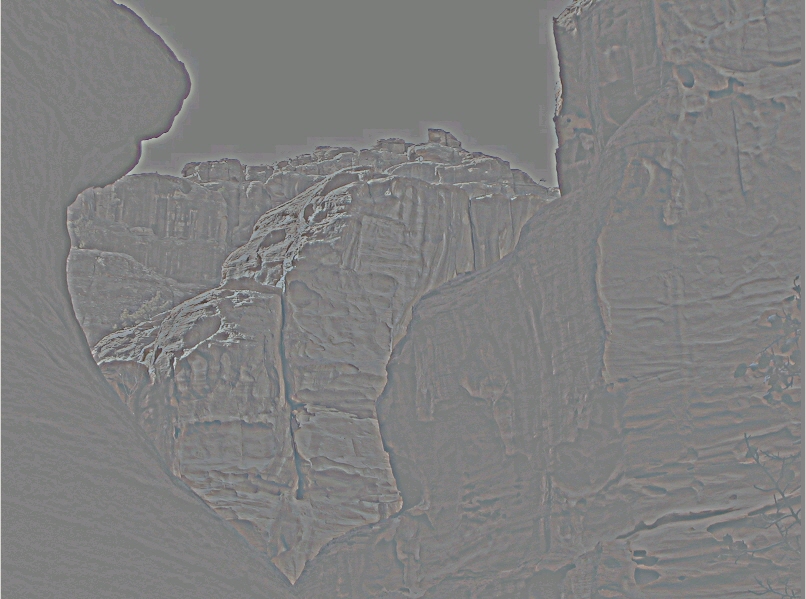

    The following figure results:

  • If the image has a region, the command will be applied on the region only.

  • This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.

High Pass Function - Before

High Pass Function - Before

High Pass Function - After

High Pass Function - After

View additional platform support for this High Pass function.

Example

Run the HighPassCommand on an image and applies the HighPass filter.

C#
Java
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;


public void HighPassCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   HighPassCommand command = new HighPassCommand();
   command.Radius = 6;
   command.Opacity = 100;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

import java.io.File;
import java.io.IOException;

import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;

import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.effects.HighPassCommand;


public void highPassCommandExample() {
   final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";

   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.setThrowExceptionsOnInvalidImages(true);

   RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "sample5.cmp"));

   // Prepare the command
   HighPassCommand command = new HighPassCommand();
   command.setRadius(6);
   command.setOpacity(100);
   int change = command.run(image);
   assertTrue(change != RasterImageChangedFlags.NONE);

   codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);
   System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
}
Requirements

Target Platforms

Help Version 23.0.2024.3.3
