ZigZag

If you use the following image:


And you call the function using the following settings:

Parameter Value
uAmplitude 47
uAttenuation 92
uFrequency 13
nPhase -162
CenterPt (192, 82)
crFill Black
uFlags FILL_CLR | ZG_RAD

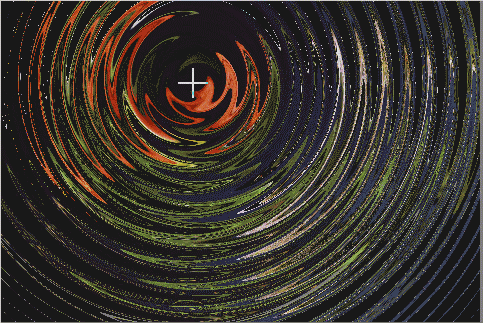

The following figure results:

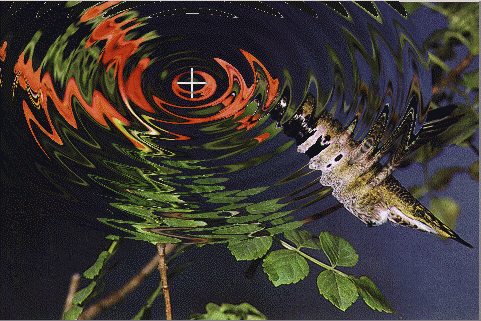

As another example, if you use the same settings except you use the ZG_POND flag, the following figure results:
