HighPassCommand Class

Removes low frequency details in an image, resulting in a sharpened image.
public class HighPassCommand : RasterCommand
Public Class HighPassCommand
   Inherits RasterCommand
@interface LTHighPassCommand : LTRasterCommand
public class HighPassCommand extends RasterCommand
public ref class HighPassCommand : public RasterCommand
  • This command removes low-frequency detail in the image. The method is opposite to that of the Gaussian Blur method
  • To increase the thickness of the edges, increase the value of radius. Usually a low value for radius is better.
  • Unlike the UnsharpMaskCommand, when using this command, the low frequency features are removed from the image.

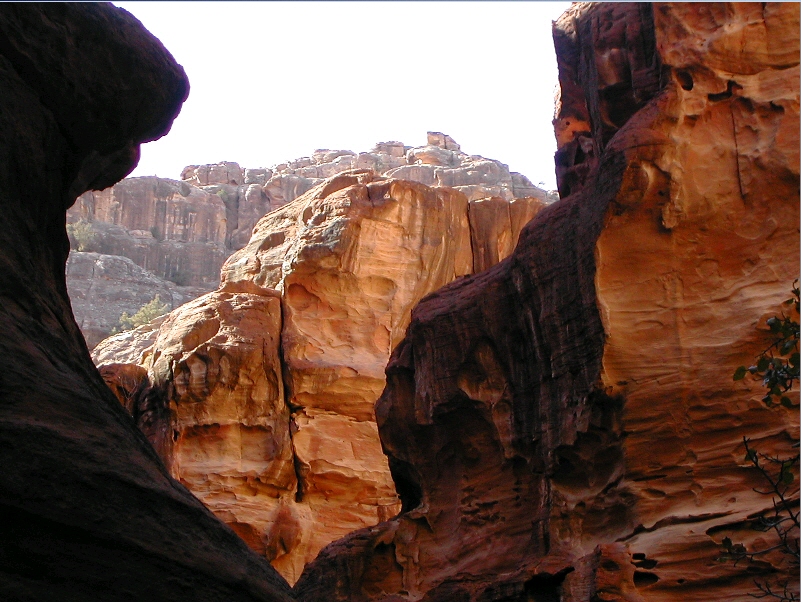

  • As an example, if you use the following image:

    And you were to call HighPassCommand using the following settings:

    Parameter Value
    Radius 6
    Opacity 100

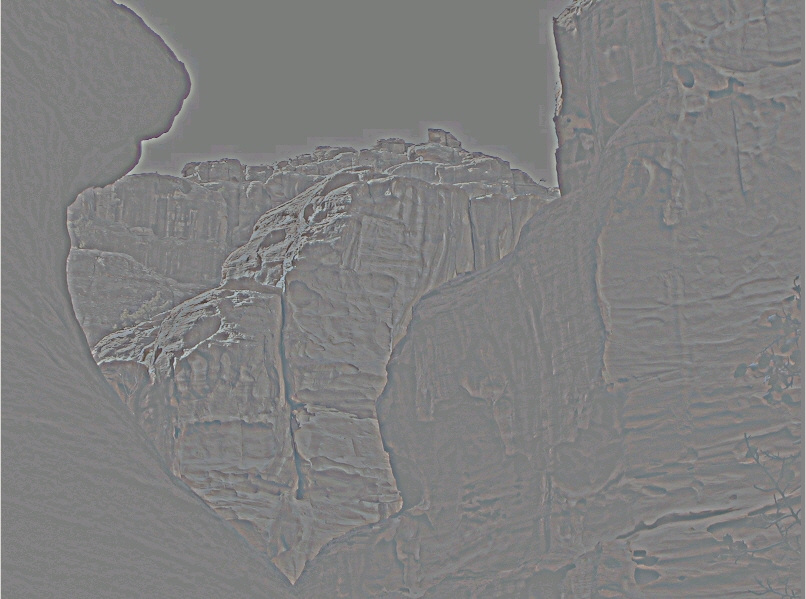

    The following figure results:


  • If the image has a region, the command will be applied on the region only.

  • This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.


Run the HighPassCommand on an image and applies the HighPass filter.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;
public void HighPassCommandExample()
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;
   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));
   // Prepare the command
   HighPassCommand command = new HighPassCommand();
   command.Radius = 6;
   command.Opacity = 100;
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);
static class LEAD_VARS
   public const string ImagesDir = @"C:\LEADTOOLS21\Resources\Images";
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Effects
Public Sub HighPassCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True
   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))
   ' Prepare the command
   Dim command As HighPassCommand = New HighPassCommand
   command.Radius = 6
   command.Opacity = 100
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)
End Sub
Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\LEADTOOLS21\Resources\Images"
End Class
