LeadFillMode Enumeration

Specifies how a polygonal shape with crossing lines is filled.

Syntax

public enum LeadFillMode : System.Enum, System.IComparable, System.IConvertible, System.IFormattable

'Declaration

Public Enum LeadFillMode
   Inherits System.Enum
   Implements System.IComparable, System.IConvertible, System.IFormattable

'Usage

Dim instance As LeadFillMode

public enum LeadFillMode : System.IComparable, System.IConvertible, System.IFormattable

public enum LeadFillMode

Leadtools.LeadFillMode = function() { };
Leadtools.LeadFillMode.prototype = {<br/>
  Alternate = 0,
	Winding = 1,

 };

public enum class LeadFillMode : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable

Members

Value	Member	Description
0	Alternate	The filled area includes the area between odd-numbered and even-numbered polygon sides on each scan line.
1	Winding	All pixels that are inside the resulting exterior lines are filled.

Remarks

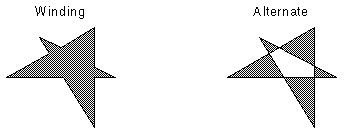

The following figure describes how fill mode is used:

Fill Mode

Example

For an example, refer to AddPolygonToRegion.

Inheritance Hierarchy

System.Object
   System.ValueType
      System.Enum
         Leadtools.LeadFillMode

Requirements
