Colored Balls

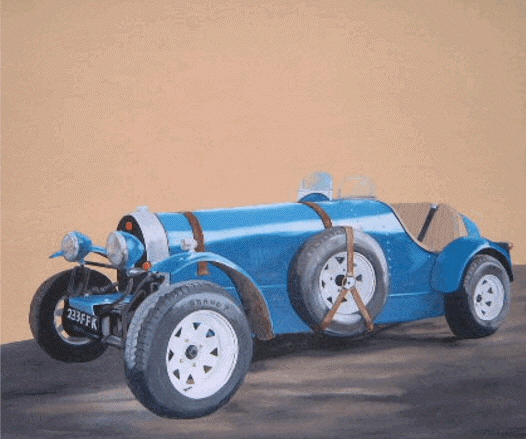

If you use the following figure.


If you call the function using the following values:

Parameter

Value

uNumBalls

500

uSize

10

uSizeVariation

90

nHighLightAng

315

crHighLight

White

crBkgColor

Blue

crShadingColor

Black

uAvrBallClrOpacity

0

uBallClrOpacityVariation

0

uRipple

4250

uFlags

CLRBALLS_SHADING_TOPBOTTOM | CLRBALLS_STICKER | CLRBALLS_IMAGE | CLRBALLS_ BALLCLR_OPACITY

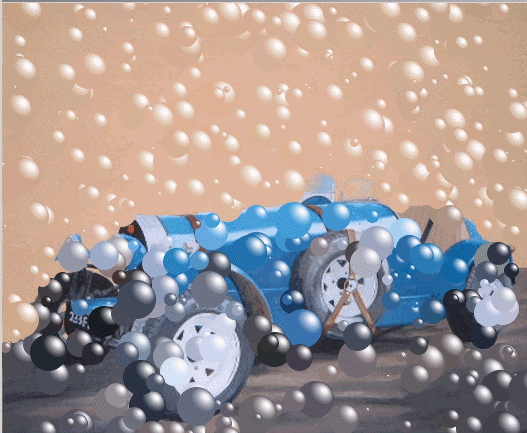

The following figure will result:


As another example, if you call the function using the following settings:

Parameter

Value

uNumBalls

1500

uSize

4

uSizeVariation

0

nHighLightAng

315

crHighLight

White

crBkgColor

Blue

crShadingColor

Black

uAvrBallClrOpacity

108

uBallClrOpacityVariation

13

uRipple

1000

uFlags

CLRBALLS_SHADING_LEFTRIGHT | CLRBALLS_BALL | CLRBALLS_IMAGE | CLRBALLS_ BALLCLR_OPACITY

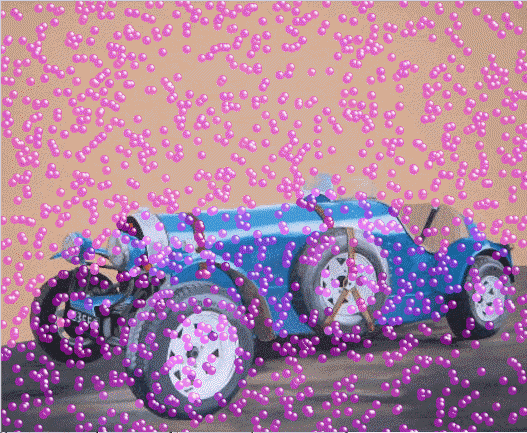

You will obtain the following figure if you use magenta as the color for the balls:
