LineRemoveCommandFlags Enumeration
Summary
Determines the behavior of the line removal process.
Syntax
[DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")][FlagsAttribute()]public enum LineRemoveCommandFlags
<FlagsAttribute()><DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")>Public Enum LineRemoveCommandFlagsInherits System.EnumImplements System.IComparable, System.IConvertible, System.IFormattable
[FlagsAttribute()][DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")]public enum class LineRemoveCommandFlags : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable
Members
| Value | Member | Description |
|---|---|---|
| 0x00000000 | None | No flags. |
| 0x00000001 | UseDpi | The unit of measure for all properties of the LineRemoveRequest is thousandths of an inch. Use the image's DPI to convert to pixels. This allows the processing of many images with different DPI. If this flag is not set, the unit of measure for all properties of the LineRemoveRequest is pixels. |
| 0x00000002 | GetRegion | When IDocumentProcessingService.BorderRemove returns the GetRegion value, the DocumentResponse.Region property will be updated with a Windows region that contains all the removed bumps or nicks. A region that contains all the removed bumps or nicks. |
| 0x00000010 | ImageUnchanged | The affected image (Run method image) is unchanged. |

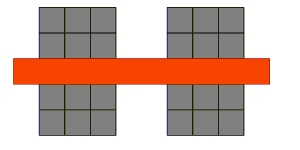

| 0x00000200 | RemoveEntire | Remove the entire line, even if the line passes through a character or a wall. Consider the line below.
Setting MaximumWallPercent as 80 and passing RemoveEntire flag will remove the red pixels as shown below.  |
| 0x00000400 | UseGap | Consider "gaps" in lines when performing line removal. If this flag is set, LineRemoveRequest.GapLength value property is used. If this flag is not passed, the LineRemoveRequest.GapLength value is ignored. |
| 0x00000800 | UseVariance | Consider line variance when performing line removal. If this flag is passed, the variance value LineRemoveRequest.Variance is used. If this flag is not passed, the variance value is ignored. |
Remarks
You can use a bitwise OR ( ¦ ) to specify one or more flags.
