AnnObject Class

This is the base class for all annotation objects.

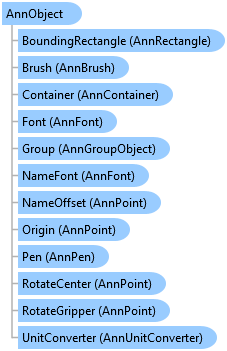

Object Model

Syntax

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

[SerializableAttribute()]
public abstract class AnnObject : AnnDrawable, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public MustInherit Class AnnObject
   Inherits AnnDrawable
   Implements System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnObject

public sealed class AnnObject : System.ICloneable, IClosable //In WinRT the IDisposable interface is replaced by IClosable, ~Remove~

function Leadtools.Annotations.AnnObject()

[SerializableAttribute()]
public ref class AnnObject abstract : public AnnDrawable, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

Remarks

The AnnObject class provides all the basic functionality common to all LEADTOOLS annotation objects.

The AnnObject is an abstract class, you cannot instantiate objects of this class directly.

Example

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Public Sub AnnObject_AnnObject(ByVal container As AnnContainer)
   For Each obj As AnnObject In container.Objects
      Dim s As String = String.Format("Type: {0}, Name: {1}, Hyperlink: {2}", obj.GetType().Name, obj.Name, obj.Hyperlink)
      MessageBox.Show(s)
   Next obj
End Sub

public void AnnObject_AnnObject(AnnContainer container)
{
   foreach(AnnObject obj in container.Objects)
   {
      string s = string.Format("Type: {0}, Name: {1}, Hyperlink: {2}", obj.GetType().Name, obj.Name, obj.Hyperlink);
      MessageBox.Show(s);
   }
}

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

AnnObject Members
Leadtools.Annotations Namespace
