PlaneCommandBitmapEffect Class
See Also  Members
Leadtools.Windows.Media.Effects.SpecialEffects Namespace : PlaneCommandBitmapEffect Class




Places the image on parallel planes along the Z-axis. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class PlaneCommandBitmapEffect
   Inherits RasterCommandBitmapEffect
Visual Basic (Usage)Copy Code
Dim instance As PlaneCommandBitmapEffect
C#
public class PlaneCommandBitmapEffect : RasterCommandBitmapEffect
Managed Extensions for C++
public __gc class PlaneCommandBitmapEffect : public RasterCommandBitmapEffect
C++/CLI
public ref class PlaneCommandBitmapEffect : public RasterCommandBitmapEffect

Remarks

  • This command shows the effect of placing images on planes along the Z-axis and bending them toward a specific point. These images may be placed above, below, to the left or to the right of the Z-axis. An external light source of the specified color and brightness may be shined on the images. The brightness may vary along the z-axis according to the BrightLength value.
  • By changing CenterPoint and the viewing screen Z-offset, you can simulate moving along the axis.
  • If the image has a region, the effect will be applied on the region dimensions only.
  • For an example, see the following figure:

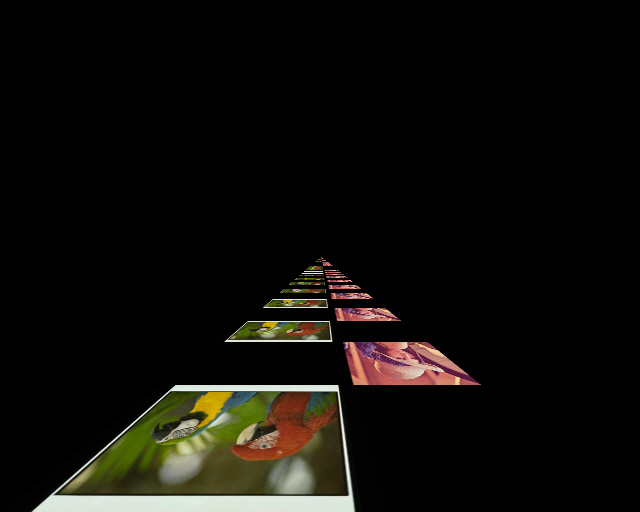

    The following figure shows the same image, after the effect has been applied:

    To obtain this effect, the following settings were used with the command:
    1. CenterPoint = new System.Windows.Point(320, 256)
    2. ZValue = 0
    3. Distance = 256
    4. PlaneOffset = 256
    5. Repeat = -1
    6. PyramidAngle = 0
    7. Stretch = 100
    8. StartBright = 0
    9. EndBright = 0
    10. BrightLength = 50
    11. BrightColor = FromRgb(255, 255, 255)
    12. FillColor = FromRgb(0, 0, 0)
    13. Flags = PlaneCommandBitmapEffectsFlags.Down | PlaneCommandBitmapEffectsFlags.Color
    14. This command does not support 32-bit grayscale images.
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.SpecialEffects.PlaneCommandBitmapEffect
