ShowAntiAliasDlg method (LEADDlgImgEffect Control)

C++ Builder example

Delphi 4.0 example



Builder Syntax

int ShowAntiAliasDlg(TWinControl* AOwnerCtrl);

Delphi Syntax

Function ShowAntiAliasDlg (AOwnerCtrl: TWinControl ): L_INT;

Overview

Refer to Using Imaging Common Dialogs.

Remarks

Displays the AntiAlias dialog box, and gets the options for the AntiAlias method.

The layout and action of the dialog depends on the flags set in the DlgFlags property. Possible options are:

Value

Meaning

DLG_ANTIALIAS_AUTOPROCESS

[$00000001] Process the image on OK. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method.

DLG_ANTIALIAS_SHOW_CONTEXTHELP

[$00000002] Dialog should contain a context sensitive help icon.

DLG_ANTIALIAS_SHOW_PREVIEW

[$00000004] Show a preview of the image in the dialog. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method.

DLG_ANTIALIAS_SHOW_TOOL_ZOOMLEVEL

[$00000008] Show the "Zoom to fit" and "Zoom Normal" toolbar buttons. The DLG_ANTIALIAS_SHOW_PREVIEW flag must be set in order to show these buttons.

DLG_ANTIALIAS_SHOW_APPLY

[$00000080] Show the Apply button in the dialog. The dialog will not apply any effect unless the user presses the Apply button.

If you include DLG_ANTIALIAS_AUTOPROCESS or DLG_ANTIALIAS_SHOW_PREVIEW in the DlgFlags property, the LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method.

The properties associated with this dialog box are:

Threshold property.

Dimension property.

AntiAliasFilterType property.

To include a Help button in the dialog, set the ShowHelpButton property to TRUE.

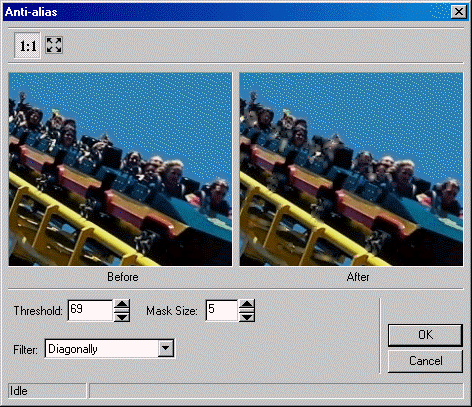

The AntiAlias dialog can be seen below:


See Also

Elements:

AntiAlias method, Threshold property, Dimension property, AntiAliasFilterType property, ShowHelpButton property, ZoomToFit Property, DlgFlags property, EnableMethodErrors property, LEADImage property

Topics:

Imaging Common Dialogs: Properties, Methods, and Events
