Draws a specified shape and feathers it to the bitmap.
#include "ltwrappr.h"
L_INT LBitmap::Vignette(pVignetteInfo, uFlags = 0)
Pointer to the VIGNETTEINFO structure that contains information about the vignette effect.
Reserved for future use. Must be 0.
Value | Meaning |
---|---|
SUCCESS | The function was successful. |
< 1 | An error occurred. Refer to Return Codes. |
This function can be used to draw a circle, ellipse, rectangle or square to create a vignette shape and then a color is feathered to the bitmap, filling either the inside or the outside of the vignette shape.
This function can process the whole image or a region of the image. If a bitmap has a region, the effect is applied only to the region.
Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.
This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.
This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

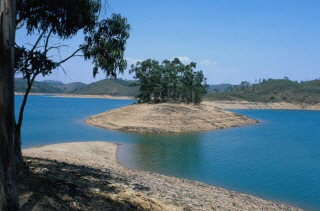

Vignette Function - Before

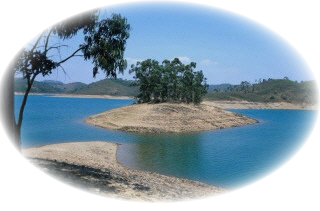

Vignette Function - After
View additional platform support for this Vignette function.
Win32, x64.
L_INT LBitmap__VignetteExample(LBitmapWindow m_LBitmapWnd)
{
L_INT nRet;
VIGNETTEINFO VignetteInfo; /* Structure which stores the required parameters*/
/*Fill the structures with the required parameters: Use an elliptical Vignette shape, perform feathering */
/* inside the vignette object, center the ellipse, use a fading color of blue*/
VignetteInfo.uStructSize = sizeof(VIGNETTEINFO);
VignetteInfo.crVigColor = RGB(0,0,255);
VignetteInfo.nFading = 50;
VignetteInfo.uFlags = VIG_ELLIPSE | VIG_FILLIN;
VignetteInfo.uFadingRate = 100;
VignetteInfo.uHeight = m_LBitmapWnd.GetHeight()/ 2;
VignetteInfo.uWidth = m_LBitmapWnd.GetWidth()/ 2;
VignetteInfo.ptCenter.x = m_LBitmapWnd.GetWidth()/ 2;
VignetteInfo.ptCenter.y = m_LBitmapWnd.GetHeight()/ 2;
LBitmap LeadBitmap;
nRet =LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("IMAGE1.CMP")), 0,ORDER_BGR);
if(nRet !=SUCCESS)
return nRet;
nRet =LeadBitmap.Vignette(&VignetteInfo);
if(nRet !=SUCCESS)
return nRet;
return SUCCESS;
}
