Converts a 1-, 4-, 8-, 16-, 24-, or 32-bit bitmap to a halftoned bitmap, with a specified pattern rotation. A halftoned bitmap is a 1-bit bitmap that has been dithered for black and white printing or display.
#include "ltwrappr.h"
virtual L_INT LBitmap::HalfTone(uType, nAngle, uDim, hBitmapList, uFlags = 0)
virtual L_INT LBitmap::HalfTone(uType, nAngle, uDim, pBitmapList, uFlags = 0)
Value that indicates the type of halftoning to perform. Possible values are:
Value | Meaning |
---|---|
HT_PRINT | [0x0000] Halftone for printing |
HT_VIEW | [0x0001] Halftone for display |
HT_RECT | [0x0002] Rectangular halftone |
HT_CIRC | [0x0003] Circular halftone |
HT_ELLIPS | [0x0004] Elliptical halftone |
HT_RAND | [0x0005] Random halftone |
HT_LINEAR | [0x0006] Linear halftone |
HT_USERDEF | [0x0007] User-defined halftone |
The angle of rotation, expressed in hundredths of degrees. A value of 0 produces a horizontal halftone pattern. This parameter specifies the number of degrees to change the pattern. Positive values rotate the pattern clockwise; negative values rotate the pattern counterclockwise. This value is ignored if the selected halftone pattern is HT_RECT, HT_CIRC or HT_RAND or HT_USERDEF.
Value that indicates the size of the grain. This value is ignored if the selected halftone pattern is HT_VIEW or HT_PRINT. If the pattern is not HT_VIEW or HT_PRINT, uDim should be >= 1. If this parameter is < 1 this function will return ERROR_INV_PARAMETER (-13).
Handle to the list of bitmaps that will be used in halftoning if the HT_USERDEF option is selected.
Pointer to LBitmapList object that will be used in halftoning if the HT_USERDEF option is selected.
Reserved for future use. Must be 0.
Value | Meaning |
---|---|
SUCCESS | The function was successful. |
< 1 | An error occurred. Refer to Return Codes. |
For the HT_USERDEF option, the number of bitmaps in the list must be at least equal to (uDim * uDim + 1). Bitmaps with higher indexes correspond to higher intensity values.
This function can process the whole image or a region of the image.
This function does not support 12 and 16-bit grayscale and 48 and 64-bit color images.
To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.
This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.
This function supports 32-bit grayscale images.
Halftone Function - Before

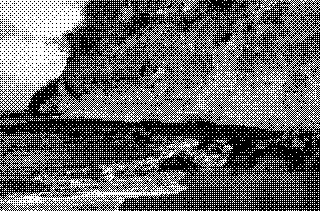

Halftone Function - After
View additional platform support for this Halftone function.
Win32, x64.
L_INT LBitmap__HalfToneExample(LBitmap & Bitmap, L_TCHAR * pszFile)
{
L_INT nRet;
nRet =Bitmap.Load(pszFile);
if(nRet !=SUCCESS)
return nRet;
nRet =Bitmap.HalfTone(HT_ELLIPS, 4500, 5, (LBitmapList*)NULL);
if(nRet !=SUCCESS)
return nRet;
return SUCCESS;
}
