AnnObject Class

This is the base class for all annotation objects.

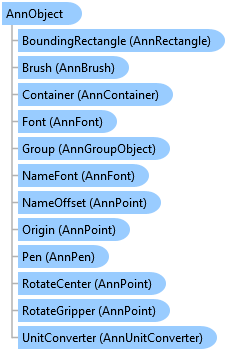

Object Model

Syntax

Visual Basic
C#
Objective-C
Java
C++

[SerializableAttribute()]
public abstract class AnnObject : AnnDrawable, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public MustInherit Class AnnObject
   Inherits AnnDrawable
   Implements System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnObject

[SerializableAttribute()]
public ref class AnnObject abstract : public AnnDrawable, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

Remarks

The AnnObject class provides all the basic functionality common to all LEADTOOLS annotation objects.

The AnnObject is an abstract class, you cannot instantiate objects of this class directly.

Example

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms
Imports Leadtools.Drawing

Public Sub AnnObject_AnnObject(ByVal container As AnnContainer)
   For Each obj As AnnObject In container.Objects
      Dim s As String = String.Format("Type: {0}, Name: {1}, Hyperlink: {2}", obj.GetType().Name, obj.Name, obj.Hyperlink)
      MessageBox.Show(s)
   Next obj
End Sub

using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;
using Leadtools.Drawing;

public void AnnObject_AnnObject(AnnContainer container)
{
   foreach(AnnObject obj in container.Objects)
   {
      string s = string.Format("Type: {0}, Name: {1}, Hyperlink: {2}", obj.GetType().Name, obj.Name, obj.Hyperlink);
      MessageBox.Show(s);
   }
}

Requirements

Target Platforms

Reference

AnnObject Members
Leadtools.Annotations Namespace
