AnnEllipseObject Class

Visual Basic
C#
Objective-C
Java
C++

[SerializableAttribute()]
public class AnnEllipseObject : AnnRectangleObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnEllipseObject
   Inherits AnnRectangleObject
   Implements System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnEllipseObject

[SerializableAttribute()]
public ref class AnnEllipseObject : public AnnRectangleObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The ellipse annotation object is a simple ellipse defined by a bounding rectangle, a pen and a brush.

For more information about the ellipse annotation object refer to AnnEllipseObject. For more information about the automated ellipse annotation object, refer to Annotation Objects - Automated Features.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnEllipseObject_AnnEllipseObject(ByVal container As AnnContainer)
   Dim ellipse As AnnEllipseObject = New AnnEllipseObject()
   ellipse.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   ellipse.Brush = New AnnSolidBrush(Color.White)
   ellipse.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   container.Objects.Add(ellipse)
End Sub

using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;

private void AnnEllipseObject_AnnEllipseObject(AnnContainer container)
{
   AnnEllipseObject ellipse = new AnnEllipseObject();
   ellipse.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   ellipse.Brush = new AnnSolidBrush(Color.White);
   ellipse.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   container.Objects.Add(ellipse);
}

Target Platforms

Reference

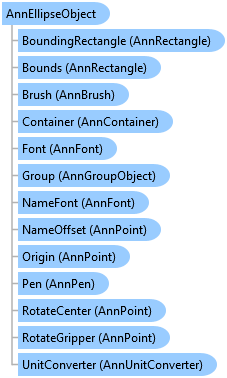

AnnEllipseObject Members
Leadtools.Annotations Namespace
