AnnButtonObject Class

Visual Basic
C#
Objective-C
Java
C++

[SerializableAttribute()]
public class AnnButtonObject : AnnTextObject, IAnnTextObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnButtonObject
   Inherits AnnTextObject
   Implements IAnnTextObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnButtonObject

[SerializableAttribute()]
public ref class AnnButtonObject : public AnnTextObject, IAnnTextObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The push button annotation object is an image of a standard Windows button that can be activated.

The AnnButtonObject class inherits the the AnnTextObject class, which implements the IAnnTextObject interface. For more information, refer to Using Text in Annotation Objects.

For more information about the button annotation object refer to AnnButtonObject. For more information about the automated annotation button object, refer to Annotation Objects - Automated Features.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnButtonObject_AnnButtonObject(ByVal container As AnnContainer, ByVal textString As String)
   Dim button As AnnButtonObject = New AnnButtonObject()
   button.Text = textString
   button.Font = New AnnFont("Arial", New AnnLength(10, AnnUnit.Point), FontStyle.Regular)
   button.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   button.Pushed = False
   container.Objects.Add(button)
End Sub

using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;

private void AnnButtonObject_AnnButtonObject(AnnContainer container, string textString)
{
   AnnButtonObject button = new AnnButtonObject();
   button.Text = textString;
   button.Font = new AnnFont("Arial", new AnnLength(10, AnnUnit.Point), FontStyle.Regular);
   button.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   button.Pushed = false;
   container.Objects.Add(button);
}

Target Platforms

Reference

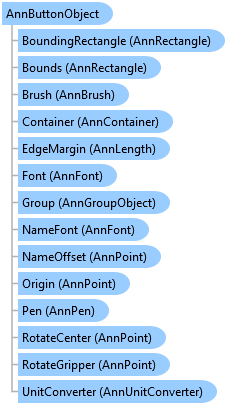

AnnButtonObject Members
Leadtools.Annotations Namespace
