MedicalViewerParaxialCutCell Class

Represents the cell that will be used to display the paraxial cut cells. It is generated from creating and adding a MedicalViewerMPRPolygon to a another cell.

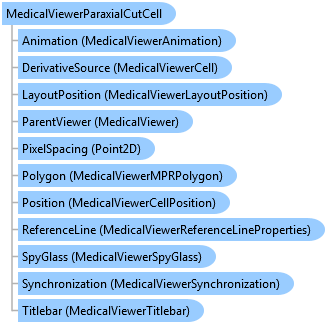

Object Model

Syntax

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++/CLI

public class MedicalViewerParaxialCutCell : MedicalViewerMultiCell, System.ComponentModel.IComponent, System.ComponentModel.INotifyPropertyChanged, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

'Declaration

Public Class MedicalViewerParaxialCutCell
   Inherits MedicalViewerMultiCell
   Implements System.ComponentModel.IComponent, System.ComponentModel.INotifyPropertyChanged, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

'Usage

Dim instance As MedicalViewerParaxialCutCell

public sealed class MedicalViewerParaxialCutCell : System.ComponentModel.IComponent, System.ComponentModel.INotifyPropertyChanged, System.ComponentModel.ISynchronizeInvoke, IClosable //In WinRT the IDisposable interface is replaced by IClosable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

function Leadtools.MedicalViewer.MedicalViewerParaxialCutCell()

public ref class MedicalViewerParaxialCutCell : public MedicalViewerMultiCell, System.ComponentModel.IComponent, System.ComponentModel.INotifyPropertyChanged, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

Remarks

The paraxial cuts are images generated from the lines that are perpendicular to one of the MedicalViewerMPRPolygon lines.

In order to be able to connect the paraxial cut cell to a polygon, pass it in the cell constructor, then change which line of the polygon to attach the paraxial cell to through PolygonLineIndex.

The user cannot draw the MedicalViewerMPRPolygon to:

Derivative Cell.
Generated MPR Cell.
Paraxial cut cell itself.
A cell with less than 3 frames.

Example

For an example, refer to MedicalViewerPanoramicCell

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

MedicalViewerParaxialCutCell Members
Leadtools.MedicalViewer Namespace
