- element
- An item in the Data Set.
- tree
- true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
Syntax
| Visual Basic (Declaration) | |
|---|---|
Public Function GetLastKey( _ ByVal element As DicomElement, _ ByVal tree As Boolean _ ) As DicomElement | |
| Visual Basic (Usage) |  Copy Code |
|---|---|
Dim instance As DicomDataSet Dim element As DicomElement Dim tree As Boolean Dim value As DicomElement value = instance.GetLastKey(element, tree) | |
| C# | |
|---|---|
public DicomElement GetLastKey( DicomElement element, bool tree ) | |
| C++/CLI | |
|---|---|
public: DicomElement^ GetLastKey( DicomElement^ element, bool tree ) | |
Parameters
- element
- An item in the Data Set.
- tree
- true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
Return Value
The last item in the Data Set, or a null reference (Nothing in Visual Basic) if the Data Set is empty.Example
For an example, refer to Leadtools.Dicom.DicomDataSet.Reset.
Remarks

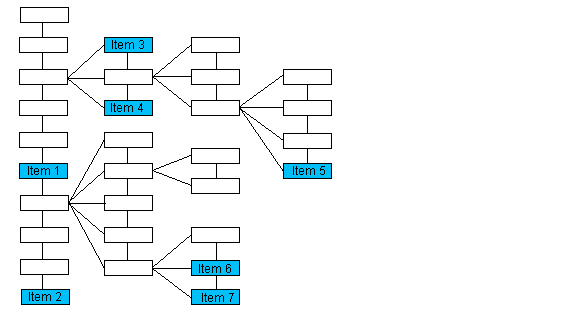

If the Data Set is evaluated as a tree structure, this method returns the last item on the same level as element with the same parent as element. Please note that the numbering of the items in the following illustration is arbitrary and does not imply order.
| If the passed object points to: | The method returns an object pointing to: |
|---|---|
| Item 1 | Item 2 |
| Item 3 | Item 4 |
| Item 5 | Item 5 |
| Item 6 | Item 7 |
| null | Item 2 |

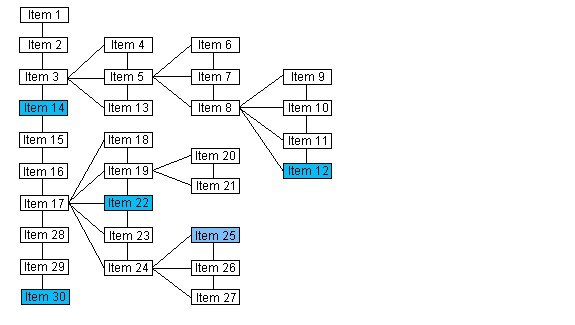

If the Data Set is evaluated as a list, the last item in the list is returned. Please note that the numbering of the items in the following illustration does indicate the order of the items when the Data Set is evaluated as a list.
| If the passed object points to: | The method returns an object pointing to: |
|---|---|
| null | Item 30 |
| Item 12 | Item 30 |
| Item 14 | Item 30 |
| Item 22 | Item 30 |
| Item 25 | Item 30 |
The following methods will also help you navigate the Data Set as either a tree or a list:
Leadtools.Dicom.DicomDataSet.GetPreviousKey
If you evaluate the Data Set as a tree, you can also use the following methods to navigate the tree:
Requirements
Target Platforms: Silverlight 3.0, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7, MAC OS/X (Intel Only)
