GetFirstKey Method
See Also
Leadtools.Dicom Namespace > DicomDataSet Class : GetFirstKey Method



element
An item in the Data Set.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
element
An item in the Data Set.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
Returns the first item in the Dicom Dir Data Set. Supported in Silverlight, Windows Phone 7.

Syntax

Visual Basic (Declaration)
Public Function GetFirstKey( _
   ByVal element As DicomElement, _
   ByVal tree As Boolean _
) As DicomElement
Visual Basic (Usage)Copy Code
Dim instance As DicomDataSet
Dim element As DicomElement
Dim tree As Boolean
Dim value As DicomElement

value = instance.GetFirstKey(element, tree)
C#
public DicomElement GetFirstKey(
   DicomElement element,
   bool tree
)
C++/CLI
public:
DicomElement^ GetFirstKey(
   DicomElement^ element,
   bool tree
)

Parameters

element
An item in the Data Set.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.

Return Value

The first item in the Data Set, or a null reference (Nothing in Visual Basic) if the Data Set is empty.

Example

For an example, refer to Leadtools.Dicom.DicomDataSet.Reset.

Remarks

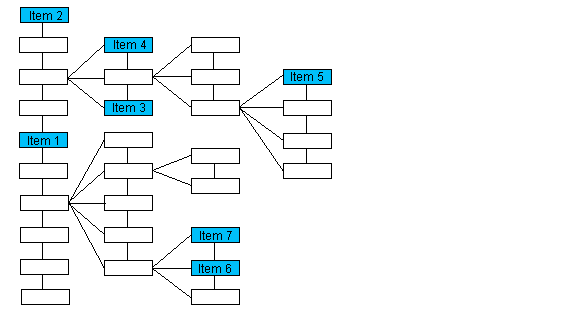

If the Data Set is evaluated as a tree structure, this method returns the first item on the same level as element with the same parent as element. Please note that the numbering of the items in this first illustration is arbitrary and does not imply order.

If the passed object points to: The method returns an object pointing to:
Item 1 Item 2
Item 3 Item 4
Item 5 Item 5
Item 6 Item 7
null Item 2

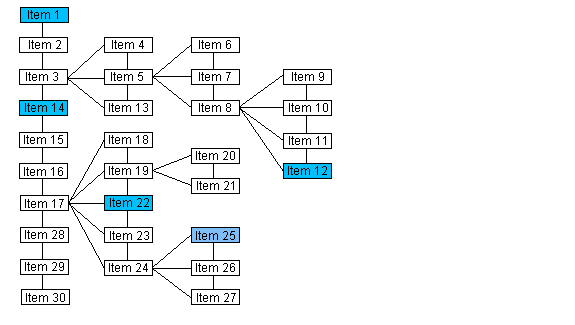

If the Data Set is evaluated as a list, the first item in the list is returned. Please note that the numbering of the items in the following illustration does indicate the order of the items when the Data Set is evaluated as a list.

If the passed object points to: The method returns an object pointing to:
null Item 1
Item 12 Item 1
Item 14 Item 1
Item 22 Item 1
Item 25 Item 1

The following methods will also help you navigate the Data Set as either a tree or a list:

GetLastKey

GetNextKey

Leadtools.Dicom.DicomDataSet.GetPreviousKey

If you evaluate the Data Set as a tree, you can also use the following methods to navigate the tree:

GetRootKey

GetParentKey

GetChildKey
