AnnRectangleEditDesigner Class
See Also  Members
Leadtools.Annotations Namespace : AnnRectangleEditDesigner Class



The AnnRectangleEditDesigner Class is available in LEADTOOLS Document and Medical Imaging toolkits.

This class extends AnnEditDesigner to provide functionality for editing an AnnRectangleObject on an annotation container.

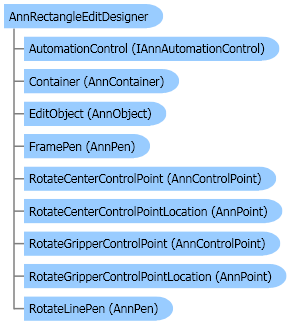

Object Model

AnnRectangleEditDesigner ClassIAnnAutomationControl InterfaceAnnContainer ClassAnnObject ClassAnnPen ClassAnnControlPoint ClassAnnPoint StructureAnnControlPoint ClassAnnPoint StructureAnnPen Class

Syntax

Visual Basic (Declaration)
<SerializableAttribute()>
Public Class AnnRectangleEditDesigner
   Inherits AnnEditDesigner
Visual Basic (Usage)Copy Code
Dim instance As AnnRectangleEditDesigner
C#
[SerializableAttribute()]
public class AnnRectangleEditDesigner : AnnEditDesigner
C++/CLI
[SerializableAttribute()]
public ref class AnnRectangleEditDesigner : public AnnEditDesigner

Example

For an example, refer to AnnDesigner.

Remarks

You can use the AnnRectangleEditDesigner class to edit an AnnRectangleObject or any other object that derives from it. For example, this designer is used to edit AnnEllipseObject objects as well.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDesigner
      Leadtools.Annotations.AnnEditDesigner
         Leadtools.Annotations.AnnRectangleEditDesigner
            Leadtools.Annotations.AnnNewGroupEditDesigner
            Leadtools.Annotations.AnnRichTextEditDesigner
            Leadtools.Annotations.AnnTextEditDesigner

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

See Also

Leadtools.Annotations requires a Document or Medical toolkit license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
