The AnnPolylineEditDesigner Class is available in LEADTOOLS Document and Medical Imaging toolkits.
This class extends AnnEditDesigner to provide functionality for editing an AnnPolylineObject on an annotation container.

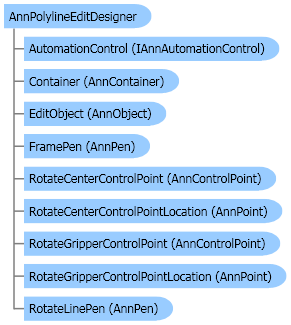

Object Model
Syntax
| Visual Basic (Declaration) | |
|---|---|
<SerializableAttribute()> Public Class AnnPolylineEditDesigner Inherits AnnEditDesigner | |
| Visual Basic (Usage) |  Copy Code |
|---|---|
Dim instance As AnnPolylineEditDesigner | |
| C# | |
|---|---|
[SerializableAttribute()] public class AnnPolylineEditDesigner : AnnEditDesigner | |
| C++/CLI | |
|---|---|
[SerializableAttribute()] public ref class AnnPolylineEditDesigner : public AnnEditDesigner | |
Example
For a complete example on how to use annotation draw and edit designers, refer to AnnDesigner.
Remarks
You can use the AnnPolylineEditDesigner class to edit an AnnPolylineObject or any other object that derives from it. For example, this designer is used to edit AnnPolygonObject objects as well.
Inheritance Hierarchy
System.Object
Leadtools.Annotations.AnnDesigner
Leadtools.Annotations.AnnEditDesigner
Leadtools.Annotations.AnnPolylineEditDesigner
Requirements
Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7
