AnnFreehandHotspotObject Class
See Also  Members
Leadtools.Annotations Namespace : AnnFreehandHotspotObject Class



The AnnFreehandHotspotObject Class is available in LEADTOOLS Document and Medical Imaging toolkits.

Defines an annotation freehand hot spot object.

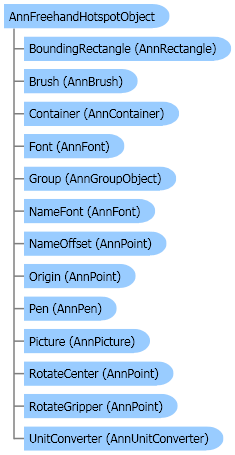

Object Model

AnnFreehandHotspotObject ClassAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPicture ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class

Syntax

Visual Basic (Declaration)
<SerializableAttribute()>
Public Class AnnFreehandHotspotObject
   Inherits AnnPolygonObject
   Implements IAnnPictureObjectICloneableIDisposableISerializable
Visual Basic (Usage)Copy Code
Dim instance As AnnFreehandHotspotObject
C#
[SerializableAttribute()]
public class AnnFreehandHotspotObject : AnnPolygonObject, IAnnPictureObjectICloneableIDisposableISerializable
C++/CLI
[SerializableAttribute()]
public ref class AnnFreehandHotspotObject : public AnnPolygonObject, IAnnPictureObjectICloneableIDisposableISerializable

Example

This example creates a freehand hotspot object.

Visual BasicCopy Code
Private Sub AnnFreehandHotspotObject_AnnFreehandHotspotObject(ByVal container As AnnContainer)
   Dim freehandHotspot As AnnFreehandHotspotObject = New AnnFreehandHotspotObject()
   freehandHotspot.Points.Add(New AnnPoint(100, 100, AnnUnit.Pixel))
   freehandHotspot.Points.Add(New AnnPoint(200, 100, AnnUnit.Pixel))
   freehandHotspot.Points.Add(New AnnPoint(200, 200, AnnUnit.Pixel))
   freehandHotspot.Points.Add(New AnnPoint(100, 300, AnnUnit.Pixel))
   container.Objects.Add(freehandHotspot)
End Sub
C#Copy Code
private void AnnFreehandHotspotObject_AnnFreehandHotspotObject(AnnContainer container)
{
   AnnFreehandHotspotObject freehandHotspot = new AnnFreehandHotspotObject();
   freehandHotspot.Points.Add(new AnnPoint(100, 100, AnnUnit.Pixel));
   freehandHotspot.Points.Add(new AnnPoint(200, 100, AnnUnit.Pixel));
   freehandHotspot.Points.Add(new AnnPoint(200, 200, AnnUnit.Pixel));
   freehandHotspot.Points.Add(new AnnPoint(100, 300, AnnUnit.Pixel));
   container.Objects.Add(freehandHotspot);
}

Remarks

The freehand hot spot annotation object is designed to work as a scaled picture drawn inside a collection of points that create a sequence of joined lines. The freehand hot spot object will draw the picture if the owner container is in design mode. If the container is in run mode, the freehand hot spot object will not draw the picture.

For information on using pictures in a freehand hot spot annotation object, refer to Using Pictures in Annotation Objects

For more information about the freehand hotspot annotation object refer to AnnFreehandHotspotObject. For more information about the automated freehand hotspot annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Hotspot Picture Tab.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnPolylineObject
            Leadtools.Annotations.AnnPolygonObject
               Leadtools.Annotations.AnnFreehandHotspotObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

See Also

Leadtools.Annotations requires a Document or Medical toolkit license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
