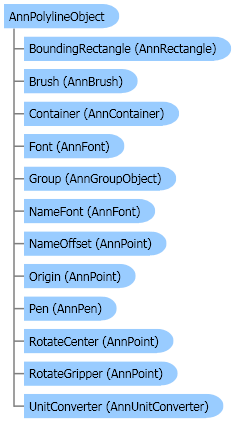

Object Model

Syntax

Visual Basic (Declaration)
<SerializableAttribute()> Public Class AnnPolylineObject Inherits AnnObject Implements ICloneable, IDisposable, ISerializable

Visual Basic (Usage)	Copy Code
Dim instance As AnnPolylineObject

C#
[SerializableAttribute()] public class AnnPolylineObject : AnnObject, ICloneable, IDisposable, ISerializable

C++/CLI
[SerializableAttribute()] public ref class AnnPolylineObject : public AnnObject, ICloneable, IDisposable, ISerializable

Example

This example creates a new polyline object with 4 points.

Visual Basic	Copy Code
Private Sub AnnPolylineObject_AnnPolylineObject(ByVal container As AnnContainer) Dim polyline As AnnPolylineObject = New AnnPolylineObject() polyline.Points.Add(New AnnPoint(100, 100, AnnUnit.Pixel)) polyline.Points.Add(New AnnPoint(200, 100, AnnUnit.Pixel)) polyline.Points.Add(New AnnPoint(200, 200, AnnUnit.Pixel)) polyline.Points.Add(New AnnPoint(100, 300, AnnUnit.Pixel)) polyline.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel)) container.Objects.Add(polyline) End Sub

Visual Basic

Copy Code

Private Sub AnnPolylineObject_AnnPolylineObject(ByVal container As AnnContainer)
   Dim polyline As AnnPolylineObject = New AnnPolylineObject()
   polyline.Points.Add(New AnnPoint(100, 100, AnnUnit.Pixel))
   polyline.Points.Add(New AnnPoint(200, 100, AnnUnit.Pixel))
   polyline.Points.Add(New AnnPoint(200, 200, AnnUnit.Pixel))
   polyline.Points.Add(New AnnPoint(100, 300, AnnUnit.Pixel))
   polyline.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   container.Objects.Add(polyline)
End Sub

C#	Copy Code
private void AnnPolylineObject_AnnPolylineObject(AnnContainer container) { AnnPolylineObject polyline = new AnnPolylineObject(); polyline.Points.Add(new AnnPoint(100, 100, AnnUnit.Pixel)); polyline.Points.Add(new AnnPoint(200, 100, AnnUnit.Pixel)); polyline.Points.Add(new AnnPoint(200, 200, AnnUnit.Pixel)); polyline.Points.Add(new AnnPoint(100, 300, AnnUnit.Pixel)); polyline.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel)); container.Objects.Add(polyline); }

Copy Code

private void AnnPolylineObject_AnnPolylineObject(AnnContainer container)
{
   AnnPolylineObject polyline = new AnnPolylineObject();
   polyline.Points.Add(new AnnPoint(100, 100, AnnUnit.Pixel));
   polyline.Points.Add(new AnnPoint(200, 100, AnnUnit.Pixel));
   polyline.Points.Add(new AnnPoint(200, 200, AnnUnit.Pixel));
   polyline.Points.Add(new AnnPoint(100, 300, AnnUnit.Pixel));
   polyline.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   container.Objects.Add(polyline);
}

Remarks

The polyline object is a simple polyline that contains a collection of AnnPoint points and a pen. For more information about the polyline annotation object refer to AnnPolylineObject. For more information about the automated polyline annotation object, refer to Annotation Objects - Automated Features.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnPolylineObject
            Leadtools.Annotations.AnnCurveObject
            Leadtools.Annotations.AnnPolygonObject
            Leadtools.Annotations.AnnPolyRulerObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

LEADTOOLS Annotations (Leadtools.Annotations assembly)	Send comments on this topic. \| Back to Introduction - All Topics \| Help Version 17.0.3.29
