ZigZagCommand Class
See Also  Members   Example
Leadtools.ImageProcessing.SpecialEffects Namespace : ZigZagCommand Class




Radially distorts the image by creating waves that twist the image around a specified center. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class ZigZagCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage)Copy Code
Dim instance As ZigZagCommand
C#
public class ZigZagCommand : RasterCommand, IRasterCommand
Managed Extensions for C++
public __gc class ZigZagCommand : public RasterCommand, IRasterCommand
C++/CLI
public ref class ZigZagCommand : public RasterCommand, IRasterCommand

Example

Visual BasicCopy Code
ImageProcessing.SpecialEffects.ZigZagCommand
   Public Sub ZigZagCommandExample()
      RasterCodecs.Startup()
      Dim codecs As New RasterCodecs()
      codecs.ThrowExceptionsOnInvalidImages = True

      Dim leadImage As RasterImage = codecs.Load("C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Master.jpg")

      ' Prepare the command
      Dim ptCenter As Point = New Point(192, 82)
      Dim fillColor As RasterColor = New RasterColor(0, 0, 0)
      Dim command As ZigZagCommand = New ZigZagCommand

      command.Amplitude = 47
      command.Attenuation = 92
      command.Frequency = 13
      command.Phase = -162
      command.CenterPoint = ptCenter
      command.FillColor = fillColor
      command.Flags = ZigZagCommandFlags.Color Or ZigZagCommandFlags.RadialWave
      command.Run(leadImage)
      codecs.Save(leadImage, "C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Result.jpg", RasterImageFormat.Jpeg, 24)

      RasterCodecs.Shutdown()
   End Sub
C#Copy Code
ImageProcessing.SpecialEffects.ZigZagCommand
      public void ZigZagCommandExample()
      {
         // Load an image
         RasterCodecs.Startup();
         RasterCodecs codecs = new RasterCodecs();
         codecs.ThrowExceptionsOnInvalidImages = true;

         RasterImage image = codecs.Load(@"C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Master.jpg");

         // Prepare the command
         Point ptCenter = new Point(192, 82);
         RasterColor fillColor = new RasterColor(0, 0, 0);
         ZigZagCommand command = new ZigZagCommand();

         command.Amplitude = 47;
         command.Attenuation = 92;
         command.Frequency = 13;
         command.Phase = -162;
         command.CenterPoint = ptCenter;
         command.FillColor = fillColor;
         command.Flags = ZigZagCommandFlags.Color | ZigZagCommandFlags.RadialWave ;
         command.Run (image);

         RasterCodecs.Shutdown();
      }

Remarks

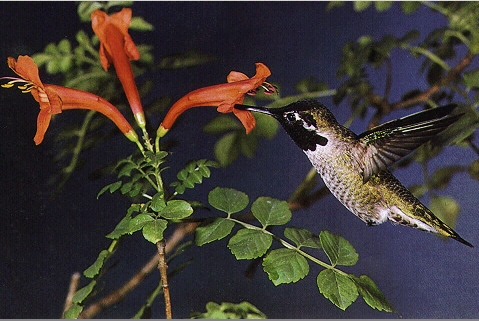

  • As an example, if you use the following image:

    And you were to call ZigZagCommand using the following settings:
    ParameterValue
    Amplitude47
    Attenuation92
    Frequency13
    Phase-162
    CenterPoint(192, 82)
    FillColorBlack
    FlagsColor | RadialWave

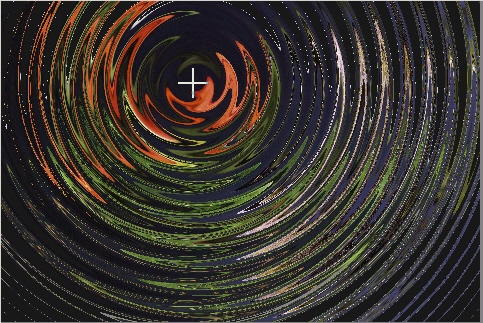

    The following figure results:

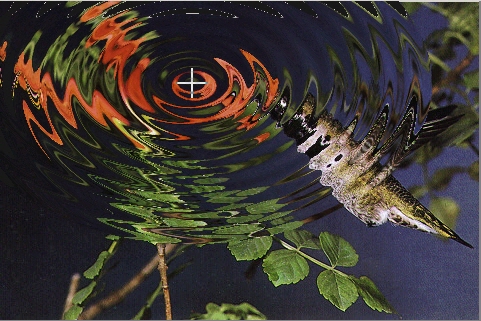

    As another settings, if you use the same settings except you use the PondRippleWave flag, the following figure results:
  • If the image has a region, the effect will be applied on the region only.
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64 bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.
For more information, refer to Removing Noise.
