CanvasCommand Class
See Also  Members   Example
Leadtools.ImageProcessing.SpecialEffects Namespace : CanvasCommand Class




Combines two images, superimposing one image on another image that is used like a canvas. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class CanvasCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage)Copy Code
Dim instance As CanvasCommand
C#
public class CanvasCommand : RasterCommand, IRasterCommand
Managed Extensions for C++
public __gc class CanvasCommand : public RasterCommand, IRasterCommand
C++/CLI
public ref class CanvasCommand : public RasterCommand, IRasterCommand

Example

Visual BasicCopy Code
ImageProcessing.SpecialEffects.CanvasCommand
   Public Sub CanvasCommandExample()
      RasterCodecs.Startup()
      Dim codecs As New RasterCodecs()
      codecs.ThrowExceptionsOnInvalidImages = True

      Dim leadImage As RasterImage = codecs.Load("C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Master.jpg")
      Dim canvasImage As RasterImage = codecs.Load("C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\ULAY1.BMP")

      ' Prepare the command
      Dim canvasCommand As CanvasCommand = New CanvasCommand
      canvasCommand.CanvasImage = canvasImage
      canvasCommand.Emboss = 100
      canvasCommand.Transparency = 100
      canvasCommand.XOffset = 10
      canvasCommand.YOffset = 10
      canvasCommand.TileOffset = 20
      canvasCommand.Flags = CanvasCommandFlags.TileShift
      canvasCommand.Run(leadImage)
      codecs.Save(leadImage, "C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Result.jpg", RasterImageFormat.Jpeg, 24)

      RasterCodecs.Shutdown()
   End Sub
C#Copy Code
ImageProcessing.SpecialEffects.CanvasCommand
      public void CanvasCommandExample()
      {
         // Load an image
         RasterCodecs.Startup();
         RasterCodecs codecs = new RasterCodecs();
         codecs.ThrowExceptionsOnInvalidImages = true;

         RasterImage image = codecs.Load(@"C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Master.jpg");
         RasterImage canvasImage = codecs.Load(@"C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\ULAY1.BMP");

         // Prepaire the command
         CanvasCommand canvasCommand = new CanvasCommand();
         canvasCommand.CanvasImage = canvasImage;
         canvasCommand.Emboss = 100;
         canvasCommand.Transparency = 100;
         canvasCommand.XOffset = 10;
         canvasCommand.YOffset = 10;
         canvasCommand.TileOffset = 20;
         canvasCommand.Flags = CanvasCommandFlags.TileShift;

         // Apply the command
         canvasCommand.Run(image);
         codecs.Save(image, @"C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\Result.jpg", RasterImageFormat.Jpeg, 24);

         RasterCodecs.Shutdown();
      }

Remarks

  • CanvasCommand combines two images, superimposing one image on another image that is used like a canvas.
  • As an example, if you use the following figure:

    And you use the following figure as the canvas image:

    And you call CanvasCommand using the following values:

    ParameterValue
    Transparency90
    Emboss117
    XOffset0
    YOffset0
    FlagsCanvasCommandFlags.TileShift
    TilesOffset0

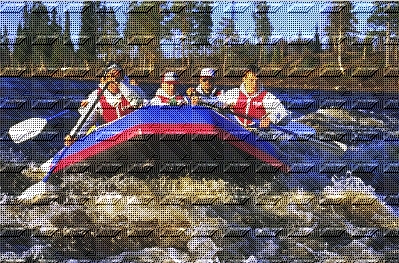

    The following figure results:

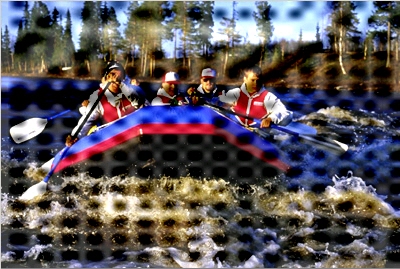

  • In the following figure the rafting image has been combined with the canvas image using the same values, except that the CanvasCommandFlags.TileFit flag is used and so instead of tiling the canvas image has been stretched to fit the dimensions of the rafting image:

  • Other commands that allow you to combine images include:

    BumpCommand

    CombineCommand

    CombineWrapCommand

    TextureAlphaBlendCommand

    UnderlayCommand

    For more information on this and other commands that can be used to combine images, Refer to Processing an Image.
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.
For more information Refer to Applying Artistic Effects.

Inheritance Hierarchy

System.Object
   Leadtools.ImageProcessing.RasterCommand
      Leadtools.ImageProcessing.SpecialEffects.CanvasCommand

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
