RasterImageUnderlayFlags Enumeration
See Also
Leadtools Namespace : RasterImageUnderlayFlags Enumeration




Indicators of how the underlying image is to be positioned.

Syntax

Visual Basic (Declaration)
<FlagsAttribute()>
Public Enum RasterImageUnderlayFlags
   Inherits Enum
Visual Basic (Usage)Copy Code
Dim instance As RasterImageUnderlayFlags
C#
[FlagsAttribute()]
public enum RasterImageUnderlayFlags : Enum
Managed Extensions for C++
[FlagsAttribute()]
__value public enum RasterImageUnderlayFlags : public Enum
C++/CLI
[FlagsAttribute()]
public enum class RasterImageUnderlayFlags : public Enum

Members

MemberDescription
None Tile the underlay. This repeats the underlying image, so that it fills the target image. This function does not do any resizing; you are responsible for the size of the tiles
Stretch Stretch the underlay to fit the dimensions of the target image

Remarks

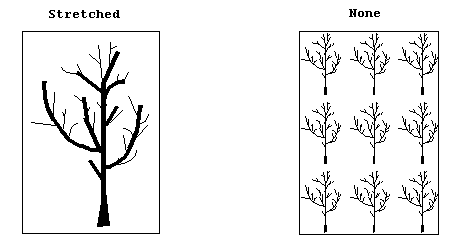

The underlying image can either be stretched or tiled to fill the target image, as shown in the following illustration:

Inheritance Hierarchy

System.Object
   System.ValueType
      System.Enum
         Leadtools.RasterImageUnderlayFlags

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
