LBitmapBase::GetRects

#include "ltwrappr.h"

virtual L_VOID LBitmapBase::GetRects(prcSrc, prcClipSrc, prcDst, prcClipDst)

LPRECT prcSrc;

/* pointer to a RECT windows structure */

LPRECT prcClipSrc;

/* pointer to a RECT windows structure */

LPRECT prcDst;

/* pointer to a RECT windows structure */

LPRECT prcClipDst;

/* pointer to a RECT windows structure */

Retrieves the rectangles used when painting the class object’s bitmap.

Parameter

Description

prcSrc

Optional pointer to a RECT windows structure, that will receive the bitmap source rectangle.

prcClipSrc

Optional pointer to a RECT windows structure, that will receive the bitmap source clip rectangle.

prcDst

Optional pointer to a RECT windows structure, that will receive the bitmap destination rectangle.

prcClipDst

Optional pointer to a RECT windows structure, that will receive the bitmap destination clip rectangle.

Returns

None

Comments

Use this function to retrieve the rectangles used for the class object when painting the bitmap.

Note:

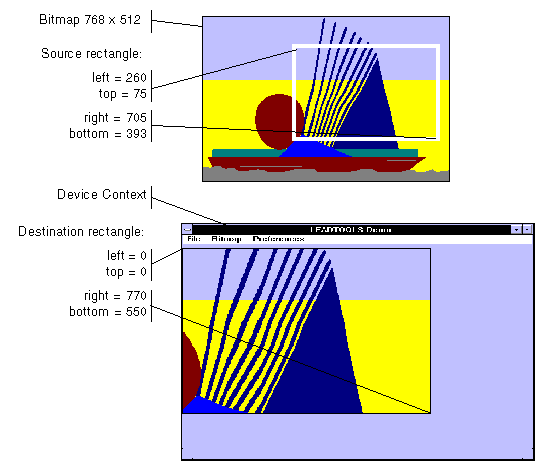

These illustrations are for a bitmap with a TOP_LEFT view perspective. For an explanation of bitmap coordinates and view perspectives, refer to Accounting for View Perspective.


In addition, you can specify a clipping area within either rectangle to limit the area to be painted. For the destination rectangle, a clipping area is commonly specified to repaint part of the image that was temporarily covered up. For a source rectangle, you can use a clipping area to update the display when only part of the image in the source rectangle has changed.

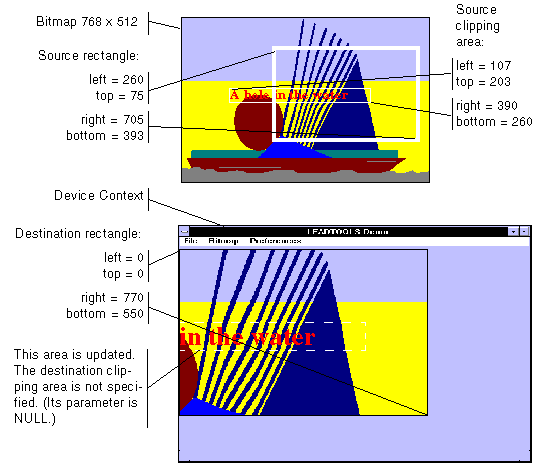

The following illustration shows how specifying a source clipping area affects the display. Text has been added to the source bitmap (using the bitmap as a display surface), and the source clipping area specifies the area to be repainted.


You can specify the various rectangles in any way that meets your needs. Coordinates can have negative values and they can extend beyond the bounds of the bitmap or the device context. In fact, it is common for the display rectangle to be bigger than the device context, where scroll bars are used to see different parts of the image.

In simple cases, you can use this function as follows:


Required DLLs and Libraries

LTDIS
LTFIL

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

See Also

Elements:

LBitmapBase::SetSrcRect, LBitmapBase::SetClipSrcRect, LBitmapBase::SetDstRect, LBitmapBase::SetClipDstRect, Class Members

Topics:

Raster Image Functions: Displaying Images



Raster Image Functions: Palettes



Handling Palette Changes

Example

LBitmapBase MyBitmap;
RECT DstRct,rcTemp;

MyBitmap.Load(TEXT("image1.cmp"),24);

rcTemp.left=10;
rcTemp.top=10;
rcTemp.right=300;
rcTemp.bottom=300;

MyBitmap.SetSrcRect(&rcTemp);
rcTemp.left=20;
rcTemp.top=20;
rcTemp.right=200;
rcTemp.bottom=200;

MyBitmap.SetClipSrcRect(&rcTemp);
rcTemp.left=0;
rcTemp.top=0;
rcTemp.right=MyBitmap.GetWidth();
rcTemp.bottom=MyBitmap.GetHeight();

MyBitmap.SetDstRect(&rcTemp);
rcTemp.left=20;
rcTemp.top=20;
rcTemp.right=MyBitmap.GetWidth()-20;
rcTemp.bottom=MyBitmap.GetHeight()-30;

MyBitmap.SetClipDstRect(&rcTemp);

MyBitmap.GetRects(0,0,&DstRct,0);
