ShowEmbossDlg method (LEADDlgImgEffect Control)
|
Builder Syntax |
int ShowEmbossDlg(TWinControl* AOwnerCtrl); |
|
Delphi Syntax |
Function ShowEmbossDlg (AOwnerCtrl: TWinControl ): L_INT; |
|
Overview |
Refer to Using Imaging Common Dialogs. |
Remarks
Displays the Emboss dialog box, and gets the options for the Emboss method.
The layout and action of the dialog depends on the flags set in the DlgFlags property. Possible options are:
|
Value |
Meaning |
|
DLG_EMBOSS_AUTOPROCESS |
[$00000001] Process the image on OK. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method. |
|
DLG_EMBOSS_SHOW_CONTEXTHELP |
[$00000002] Dialog should contain a context sensitive help icon. |
|
DLG_EMBOSS_SHOW_PREVIEW |
[$00000004] Show a preview of the image in the dialog. The LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method. |
|
DLG_EMBOSS_SHOW_TOOL_ZOOMLEVEL |
[$00000008] Show the "Zoom to fit" and "Zoom Normal" toolbar buttons. The DLG_EMBOSS_SHOW_PREVIEW flag must be set in order to show these buttons. |
If you include DLG_EMBOSS_AUTOPROCESS or DLG_EMBOSS_SHOW_PREVIEW in the DlgFlags property, the LEADImage property must be assigned a Main Control containing a valid bitmap before calling this method.
The properties associated with this dialog box are:
Depth property
Direction property
To include a Help button in the dialog, set the ShowHelpButton property to TRUE.

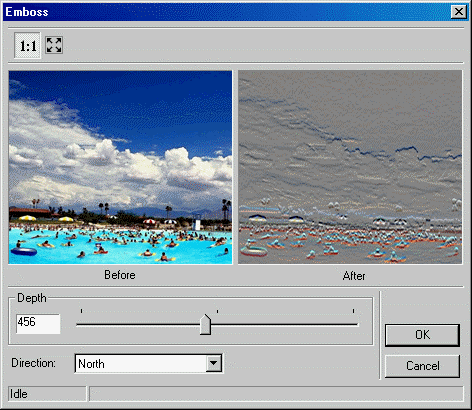

The Emboss dialog can be seen below:
See Also
|
Elements: |
Emboss method, Depth property, Direction property, ShowHelpButton property, ZoomToFit Property, DlgFlags property, EnableMethodErrors property, LEADImage property |
|
Topics: |
