LEADTOOLS (Leadtools assembly)
RasterImageUnderlayFlags Enumeration
Show in webframe
| Leadtools Namespace : RasterImageUnderlayFlags Enumeration |
[FlagsAttribute()] public enum RasterImageUnderlayFlags : System.Enum, System.IComparable, System.IConvertible, System.IFormattable
'Declaration <FlagsAttribute()> Public Enum RasterImageUnderlayFlags Inherits System.Enum Implements System.IComparable, System.IConvertible, System.IFormattable
'Usage Dim instance As RasterImageUnderlayFlags
[FlagsAttribute()] public enum RasterImageUnderlayFlags : System.IComparable, System.IConvertible, System.IFormattable
Leadtools.RasterImageUnderlayFlags = function() { };
Leadtools.RasterImageUnderlayFlags.prototype = {
None = 0x00,
Stretch = 0x01,
};
[FlagsAttribute()] public enum class RasterImageUnderlayFlags : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable
| Value | Member | Description |
|---|---|---|
| 0x00 | None | Tile the underlay. This repeats the underlying image, so that it fills the target image. This function does not do any resizing; you are responsible for the size of the tiles |
| 0x01 | Stretch | Stretch the underlay to fit the dimensions of the target image |

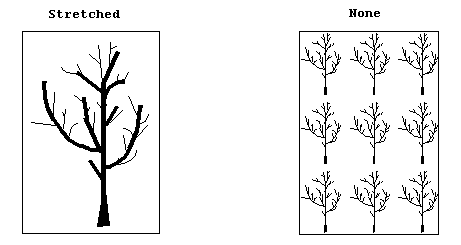

The underlying image can either be stretched or tiled to fill the target image, as shown in the following illustration:
System.Object
System.ValueType
System.Enum
Leadtools.RasterImageUnderlayFlags
