Underlay Method

C#
Visual Basic
WinRT C#
Objective-C
Java
WinRT JavaScript
C++

public void Underlay(
   RasterImage underlayImage,
   RasterImageUnderlayFlags flags
)

'Declaration

Public Sub Underlay( _
   ByVal underlayImage As RasterImage, _
   ByVal flags As RasterImageUnderlayFlags _
)

'Usage

Dim instance As RasterImage
Dim underlayImage As RasterImage
Dim flags As RasterImageUnderlayFlags

instance.Underlay(underlayImage, flags)

public void Underlay(
   RasterImage underlayImage,
   RasterImageUnderlayFlags flags
)

-(BOOL)underlay:(LTRasterImage*)underlayImage
          flags:(LTRasterImageUnderlayFlags)flags
          error:(NSError**)outError;

public void underlay(
  RasterImage underlayImage,
  RasterImageUnderlayFlags flags
)

 function Leadtools.RasterImage.Underlay(
   underlayImage ,
   flags
)

public:
void Underlay(
   RasterImage^ underlayImage,
   RasterImageUnderlayFlags flags
)

Parameters

underlayImage: The image that will be used as the underlying image. This is the image that appears to be on bottom and is grayscaled as it is combined with the target image.
flags: Indicators of how the underlying image is to be positioned.

This is most effective when the underlying image is a filtered one, such as an embossed image.

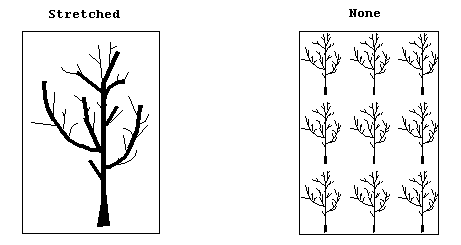

This method changes the colors of the underlay to grayscale as it combines the images. It updates this RasterImage, leaving the underlayImage unchanged. underlayImage can either be stretched or tiled to fill the image, as shown in the following illustration:

Underlay

For more information, refer to Introduction to Image Processing With LEADTOOLS.

For more information, refer to Applying Artistic Effects.

C#
Visual Basic
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing
Imports Leadtools.ImageProcessing.Core
Imports Leadtools.ImageProcessing.Color
Imports Leadtools.WinForms
Imports Leadtools.Dicom
Imports Leadtools.Drawing

Public Sub UnderlayExample()
   Dim codecs As RasterCodecs = New RasterCodecs()
   Dim image As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "IMAGE1.CMP"))

   ' Load underlay image
   Dim underlayImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ULAY1.BMP"))
   ' Use underlayImage as a tiled underlay for image
   image.Underlay(underlayImage, RasterImageUnderlayFlags.None)

   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "IMAGE1_underlay.BMP"), RasterImageFormat.Bmp, 0)

   image.Dispose()
   underlayImage.Dispose()
   codecs.Dispose()
End Sub

Public NotInheritable Class LEAD_VARS
Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.WinForms;
using Leadtools.Dicom;
using Leadtools.Drawing;


public void UnderlayExample()
{
   RasterCodecs codecs = new RasterCodecs();
   RasterImage image = codecs.Load(Path.Combine(ImagesPath.Path, "IMAGE1.CMP"));
   // Load underlay image
   RasterImage underlayImage = codecs.Load(Path.Combine(ImagesPath.Path, "ULAY1.BMP"));
   // Use underlayImage as a tiled underlay for image
   image.Underlay(underlayImage, RasterImageUnderlayFlags.None);

   codecs.Save(image, Path.Combine(ImagesPath.Path, "IMAGE1_underlay.BMP"), RasterImageFormat.Bmp, 0);

   image.Dispose();
   underlayImage.Dispose();
   codecs.Dispose();
}

RasterImageExamples.prototype.UnderlayExample = function () {
   Tools.SetLicense();
   with (Leadtools) {
      with (Leadtools.Codecs) {

         var codecs = new RasterCodecs();
         var srcFileName = "Assets\\Image1.cmp";
         var image;
         var underlayImage;

         return Tools.AppInstallFolder().getFileAsync(srcFileName).then(function (loadFile) {
            return codecs.loadAsync(LeadStreamFactory.create(loadFile))
         })
            .then(function (img) {
               image = img;

               // Load underlay image
               srcFileName = "Assets\\ULAY1.BMP";
               return Tools.AppInstallFolder().getFileAsync(srcFileName)
            })
            .then(function (loadFile) {
               return codecs.loadAsync(LeadStreamFactory.create(loadFile))
            })
            .then(function (underlayImg) {
               underlayImage = underlayImg;

               // Use underlayImage as a tiled underlay for image
               image.underlay(underlayImage, RasterImageUnderlayFlags.none);

               return Tools.AppLocalFolder().createFileAsync("IMAGE1_underlay.BMP")
            })
            .then(function (saveFile) {
               var saveStream = LeadStreamFactory.create(saveFile);
               return codecs.saveAsync(image, saveStream, RasterImageFormat.bmp, 0)
            })
            .then(function () {

               image.close();
               underlayImage.close();
               codecs.close();
            });
      }
   }
}

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Dicom;


public async Task UnderlayExample()
{
   RasterCodecs codecs = new RasterCodecs();
   string srcFileName = @"Assets\Image1.cmp";
   StorageFile loadFile = await Tools.AppInstallFolder.GetFileAsync(srcFileName);
   RasterImage image = await codecs.LoadAsync(LeadStreamFactory.Create(loadFile));
   // Load underlay image
   srcFileName = @"Assets\ULAY1.BMP";
   loadFile = await Tools.AppInstallFolder.GetFileAsync(srcFileName);
   RasterImage underlayImage = await codecs.LoadAsync(LeadStreamFactory.Create(loadFile));

   // Use underlayImage as a tiled underlay for image
   image.Underlay(underlayImage, RasterImageUnderlayFlags.None);

   StorageFile saveFile = await Tools.AppLocalFolder.CreateFileAsync("IMAGE1_underlay.BMP");
   ILeadStream saveStream = LeadStreamFactory.Create(saveFile);
   await codecs.SaveAsync(image, saveStream, RasterImageFormat.Bmp, 0);

   image.Dispose();
   underlayImage.Dispose();
   codecs.Dispose();
}

using Leadtools;
using Leadtools.Codecs;
using Leadtools.Dicom;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Examples;
using Leadtools.Windows.Media;

public void UnderlayExample(RasterImage image, RasterImage underlayImage, Stream destStream)
{
   // Use underlayImage as a tiled underlay for image
   image.Underlay(underlayImage, RasterImageUnderlayFlags.None);
   RasterCodecs codecs = new RasterCodecs();
   codecs.Save(image, destStream, RasterImageFormat.Bmp, 0);

   image.Dispose();
   underlayImage.Dispose();
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.Dicom
Imports Leadtools.ImageProcessing
Imports Leadtools.ImageProcessing.Core
Imports Leadtools.ImageProcessing.Color
Imports Leadtools.Windows.Media

Public Sub UnderlayExample(ByVal image As RasterImage, ByVal underlayImage As RasterImage, ByVal destStream As Stream)
   ' Use underlayImage as a tiled underlay for image
   image.Underlay(underlayImage, RasterImageUnderlayFlags.None)
   Dim codecs As RasterCodecs = New RasterCodecs()
   codecs.Save(image, destStream, RasterImageFormat.Bmp, 0)

   image.Dispose()
   underlayImage.Dispose()
End Sub
