L_DlgColor

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_DlgColor(hWndOwner, pDlgParams)

HWND hWndOwner;

/* owner of dialog */

LPCOLORDLGPARAMS pDlgParams;

/* pointer to a COLORDLGPARAMS structure */

Displays the Color dialog box, which allows the user to pick a color.

Parameter

Description

hWndOwner

Handle of the window which owns the dialog.

pDlgParams

Pointer to a COLORDLGPARAMS structure to be updated with the values entered by the user, through the dialog. Set members of this structure, before calling this function, to set the dialog’s initial values.

Returns

SUCCESS_DLG_OK

The "OK" button was pressed, and the dialog exited successfully.

SUCCESS_DLG_CANCEL

The "Cancel" button was pressed, and the dialog exited successfully.

< 1

An error occurred. Refer to Return Codes.

Comments

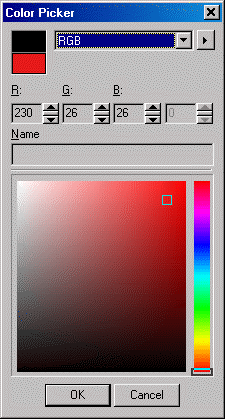

The Color dialog can be seen below:


Required DLLs and Libraries

LTDLGCLR
LTDLGKRN
LTDLGUTL
LTDLGCTRL
LTDLGCOM
LTDIS
LTIMG
LTKRN

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

See Also

Functions:

L_DlgInit, L_DlgStitch, L_DlgFreeHandWave, L_DlgPolar, L_DlgZoomWave, L_DlgRadialWave, L_DlgWave, L_DlgWaveShear, L_DlgPunch, L_DlgRipple, L_DlgBending, L_DlgSpherize, L_DlgRotate, L_DlgShear, L_DlgAddBorder, L_DlgAddFrame, L_DlgCanvasResize, L_DlgHistogram, L_DlgPNGWebTuner, L_DlgGIFWebTuner, L_DlgGetShape, L_DlgGetEffect, L_DlgGetTransition, L_DlgGetGradient, L_DlgGetText, L_DlgRemoveRedeye, L_DlgSmooth, L_DlgLineRemove, L_DlgBorderRemove, L_DlgInvertedText, L_DlgDotRemove, L_DlgHolePunchRemove

Topics:

Dialogs: Color Manipulation



Using Imaging Common Dialog



HSB-Brightness Based Model



HSB-Hue Based Model



HSB-Wheel Based Model



RGB-3D Additive Model



Lab-Device Independent Model



CMY-3D Subtractive Model



CMYK -3D Subtractive Model

Example

void ShowDlg ( HWND hWndOwner )
{
   COLORDLGPARAMS DlgParams ;

   L_DlgInit(DLG_INIT_COLOR) ;

   memset ( &DlgParams, 0, sizeof ( COLORDLGPARAMS ) ) ;

   DlgParams.uStructSize  = sizeof ( COLORDLGPARAMS ) ;
   DlgParams.uDlgFlags = DLG_COLOR_SHOW_OLDCOLOR              |
                      DLG_COLOR_SHOW_NEWCOLOR              |
                      DLG_COLOR_SHOW_NAME                  |
                      DLG_COLOR_COLORSPACE_SHOW_HUE        |
                      DLG_COLOR_COLORSPACE_SHOW_BRIGHTNESS |
                      DLG_COLOR_COLORSPACE_SHOW_WHEEL      |
                      DLG_COLOR_COLORSPACE_SHOW_RGB        |
                      DLG_COLOR_COLORSPACE_SHOW_CMY        |
                      DLG_COLOR_COLORSPACE_SHOW_CMYK       |
                      DLG_COLOR_COLORSPACE_SHOW_LAB        |
                      DLG_COLOR_COLORMODEL_SHOW_RGB        |
                      DLG_COLOR_COLORMODEL_SHOW_HSB        |
                      DLG_COLOR_COLORMODEL_SHOW_HLS        |
                      DLG_COLOR_COLORMODEL_SHOW_CMY        |
                      DLG_COLOR_COLORMODEL_SHOW_CMYK       |
                      DLG_COLOR_COLORMODEL_SHOW_LAB ;

   DlgParams.crColor               = RGB ( 255, 255, 255 ) ;
   DlgParams.hpalCustom            = NULL ;

   L_DlgColor( hWndOwner, &DlgParams ) ;
   L_DlgFree() ;
}
