L_DicomGetNextKey

Summary

Returns a pointer to the item in the Dicom Dir Data Set that immediately follows the specified item.

Syntax

#include "ltdic.h"

L_LTDIC_API pDICOMELEMENT L_DicomGetNextKey(hDS, pElement, bTree)

Parameters

HDICOMDS hDS

A DICOM handle.

pDICOMELEMENT pElement

Pointer to a DICOMELEMENT structure that contains an item in the Data Set. A pointer to the item in the Data Set that immediately follows this item will be returned.

L_BOOL bTree

Flag that indicates how the Data Set will be evaluated. Possible values are:

Value Meaning
TRUE Evaluate the Data Set as a tree.
FALSE Evaluate the Data Set as a list.

Returns

Value Meaning
!NULL A pointer to a DICOMELEMENT structure that contains the item in the Data Set that immediately follows the item specified in pElement.
NULL There is not an item following pElement. (pElement is the last item in the Data Set.)

Comments

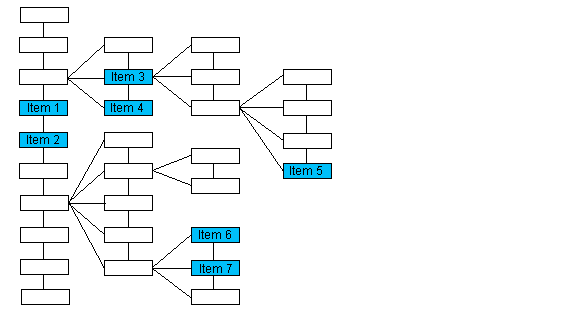

If the Data Set is evaluated as a tree structure, this function returns the next item on the same level as pElement with the same parent as pElement. Please note that the numbering of the items in this illustration is arbitrary and does not imply order.

If the passed pointer points to The function returns a pointer to
Item 1 Item 2
Item 3 Item 4
Item 5 NULL
Item 6 Item 7

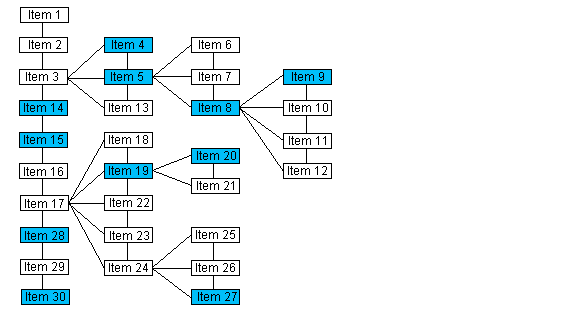

If the Data Set is evaluated as a list, the next item in the list is returned. Please note that the numbering of the items in this illustration does indicate the order of the items when the Data Set is evaluated as a list.

If the passed pointer points to The function returns a pointer to
Item 14 Item 15
Item 4 Item 5
Item 8 Item 9
Item 19 Item 20
Item 27 Item 28
Item 30 NULL

The following functions will also help you navigate the Data Set as either a tree or a list:

If you evaluate the Data Set as a tree, you can also use the following functions to navigate the tree:

Required DLLs and Libraries

Platforms

Win32, x64, Linux.

See Also

Functions

Topics

Example

For an example, refer to L_DicomInsertKey.
