LEAD Video Rotation Filter User Interface (2.0)Rotation Video Effect User Interface

Show in webframe

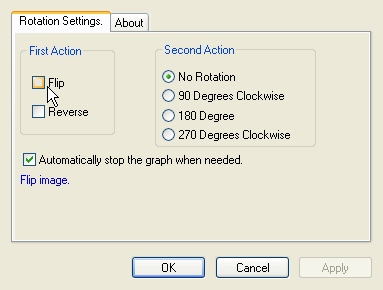

Use the Rotation Video filtereffectto flip, reverse, or rotate a video by 90, 180, or 270 degrees. The property page is shown in the figure below:

The Rotation property page provides a user interface for changing the filter's attributes.effect.

Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:



Control

Description

First Action group



Flip check box

If selected, flip the frame.

Reverse check box

If selected, reverse the frame.

Second Action group



No Rotation radio button

Do not rotate.

90 Degrees radio button

Rotate 90 degrees.

180 Degrees radio button

Rotate 180 degrees.

270 Degrees radio button

Rotate 270 degrees.

Automatically stop check box

If selected, allows stopping the graph automatically. This is needed when the dimensions change while the graph is running. You must re-run the graph after the change is applied.
