LEAD H264 Encoder Advanced (DMO) (4.0)

Show in webframe

The LEAD H264 Encoder Advanced (DMO) is a DirectX Media Object (DMO) filter for compressing video data using the H.264/AVC standard. The H.264 standard is the latest video standard developed jointly by ITU and MPEG. The H.264/AVC standard provides a far more efficient algorithm for compressing video. It typically outperforms all existing standards by a factor of three to four especially in comparison to MPEG-2.

H264 is a high quality video compression algorithm suited for all types of applications with different ranges of bit rates. The compressed video data can be stored inside AVI or OGG files with the option of saving the file with or without the audio data.

The compression options for the LEAD H264 Advanced Encoder Filter (DMO) can be set manually through the property page of the LEAD H264 Encoder (a DirectShow ® filter). This is necessary because the DMO architecture does not allow the use of property pages specific to the codec.

LEAD H264 Encoder property page



The encoding options for both these codecs are the same as the encoding options for the LEAD H264 Encoder (DirectShow® filter), except for the super compression options, which are:

These codecs are designed to work with Microsofts Media Encoder program. This is part of the Windows Media Server technology package, which is intended to stream video over the Internet. For more information on the Windows Media Encoder, you should refer to the Microsoft documentation on MSDN.

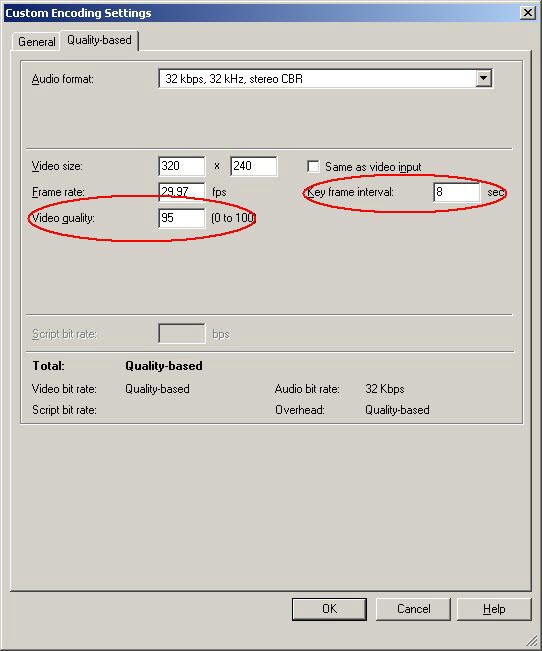

These DMO encoders should be used with the Quality VBR encoding mode since that is what the Windows Media Encoder uses. In addition, the following encoding options of the LEAD H264 Encoder Filter need to be adjusted for the Windows Media Encoder as follows:

Microsoft values 1-2 become a LEAD value of 1.

Microsoft values 3-4 become a LEAD value of 2.

Microsoft values 5-6 become a LEAD value of 3 .

Microsoft values 7-8 become a LEAD value of 4

.

.

.

Microsoft values 99-100 become a LEAD value of 50 .



NOTES:

It is recommended to use the DMO encoders only with the Windows Media Encoder. For more information on the Windows Media Encoder, you should refer to the Microsoft documentation on MSDN.

Applications written with LEADTOOLS multimedia toolkit or applications that encode video using DirectShow® should use the DirectShow® version of the H264 codec (LEAD H264 Professional Encoder Filter).

Technical details for the filter are provided in the following table:

Filter Interface(s)

N/A

Interface ID

N/A

Input Media Types

Type:
MEDIATYPE_Video
Subtypes:
MEDIASUBTYPE_RGB32
MEDIASUBTYPE_RGB24

Output Media Types

Type:
MEDIATYPE_Video
Subtype:
MEDIASUBTYPE_LX64

Filter CLSID

N/A

Property Page(s) CLSID

N/A

Filter category

CLSID_VideoCompressorCategory

Executable

LENCH2644.dll, DSKernel2.dll

Header

N/A



This filter is included as part of the following modules:

LEAD H.264 Video Encoder Module

Platforms

Win32, x64
