GetChildElement Method
See Also
Leadtools.Dicom Namespace > DicomDataSet Class : GetChildElement Method



element
An item in the Data Set.
includeVolatile
true to retrieve the first child element, volatile or non-volatile; false to retrieve the first non-volatile child element.
element
An item in the Data Set.
includeVolatile
true to retrieve the first child element, volatile or non-volatile; false to retrieve the first non-volatile child element.
Returns the item in the Data Set that is the first child of the specified item. Supported in Silverlight, Windows Phone 7.

Syntax

Visual Basic (Declaration)
Public Function GetChildElement( _
   ByVal element As DicomElement, _
   ByVal includeVolatile As Boolean _
) As DicomElement
Visual Basic (Usage)Copy Code
Dim instance As DicomDataSet
Dim element As DicomElement
Dim includeVolatile As Boolean
Dim value As DicomElement

value = instance.GetChildElement(element, includeVolatile)
C#
public DicomElement GetChildElement(
   DicomElement element,
   bool includeVolatile
)
C++/CLI
public:
DicomElement^ GetChildElement(
   DicomElement^ element,
   bool includeVolatile
)

Parameters

element
An item in the Data Set.
includeVolatile
true to retrieve the first child element, volatile or non-volatile; false to retrieve the first non-volatile child element.

Return Value

The item in the Data Set that is the first child of the item specified by element, or a null reference (Nothing in Visual Basic) if element has no child items.

Example

For an example, refer to Load(String,DicomDataSetLoadFlags).

Remarks

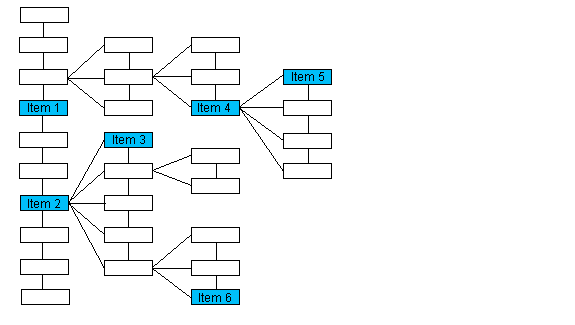

The child is the offspring one level lower than the specified item. If the specified item has no child items, this method will return a null reference (Nothing in Visual Basic). For example:

If the passed object points to: The method returns an object pointing to:
Item 1 null
Item 2 Item 3
Item 4 Item 5
Item 6 null

The following methods will also help you navigate the Data Set:

Leadtools.Dicom.DicomDataSet.GetFirstElement

Leadtools.Dicom.DicomDataSet.GetLastElement

Leadtools.Dicom.DicomDataSet.GetNextElement

Leadtools.Dicom.DicomDataSet.GetParentElement

Leadtools.Dicom.DicomDataSet.GetRootElement

A volatile element is an element that can be changed or destroyed in the process of inserting or setting an image. A non-volatile element is an element that must be changed manually; it is not changed or destroyed by inserting or setting an image.

For example, a grayscale image has elements DicomTag.SmallestImagePixelValue, DicomTag.LargestImagePixelValue, etc. If the image is changed to a color image, these elements disappear and the following elements appear: DicomTag.RedPaletteColorLookupTableDescriptor, etc. These are volatile elements since they are changed or destroyed when an image is changed or set.

To retrieve a child element that must be changed manually, i.e., is not volatile, set includeVolatile to false. To retrieve a child element that may be either volatile or non-volatile, set includeVolatile to true.

Requirements

Target Platforms: Silverlight 3.0, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7, MAC OS/X (Intel Only)

See Also

Leadtools.Dicom requires a Medical toolkit server license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
