DeleteKey Method
See Also
Leadtools.Dicom Namespace > DicomDataSet Class : DeleteKey Method



element
The key element to delete.
element
The key element to delete.
Deletes the specified key element from the Dicom Dir Data Set. Supported in Silverlight, Windows Phone 7.

Syntax

Visual Basic (Declaration)
Public Sub DeleteKey( _
   ByVal element As DicomElement _
)
Visual Basic (Usage)Copy Code
Dim instance As DicomDataSet
Dim element As DicomElement

instance.DeleteKey(element)
C#
public void DeleteKey(
   DicomElement element
)
C++/CLI
public:
void DeleteKey(
   DicomElement^ element
)

Parameters

element
The key element to delete.

Example

For an example, refer to Leadtools.Dicom.DicomDataSet.Reset.

Remarks

When a key element is deleted using this method, all offspring of the key element (both key element children and non-key element children) and all their respective children are also deleted. Below are illustrations of this.

For the sake of these illustrations, the order of siblings is top to bottom.

Please note that the numbering of the items of interest is arbitrary, and does not imply order.

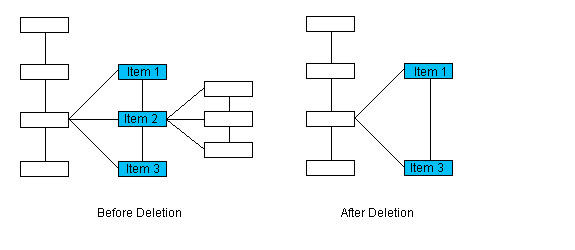

In this illustration, item 2 will be deleted. If any of the children of item 2 had children, these would be deleted also.

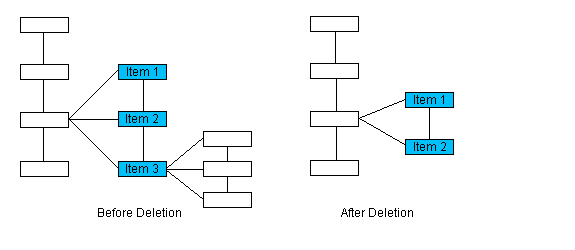

In this illustration, item 3 will be deleted. Again, if any of the children of item 2 had children, these would be deleted also.

Please note that key elements should not be deleted using DeleteElement. Deleting a key element using DeleteElement will not delete any child key elements, but will delete information that references the child key elements.

For more information about key elements, refer to Working with Basic Directory Key Elements.

Requirements

Target Platforms: Silverlight 3.0, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7, MAC OS/X (Intel Only)

See Also

Leadtools.Dicom requires a Medical toolkit server license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
