BricksTextureCommand Constructor(Int32,Int32,Int32,Int32)
See Also  Example
Leadtools.ImageProcessing.SpecialEffects Namespace > BricksTextureCommand Class > BricksTextureCommand Constructor : BricksTextureCommand Constructor(Int32,Int32,Int32,Int32)



bricksWidth
Flat area of the brick width, in pixels. Valid range is from 0 to the image width. This parameter only accepts positive values.
bricksHeight
Flat area of the brick height, in pixels. Valid range is from 0 to the image height. This parameter only accepts positive values.
edgeWidth

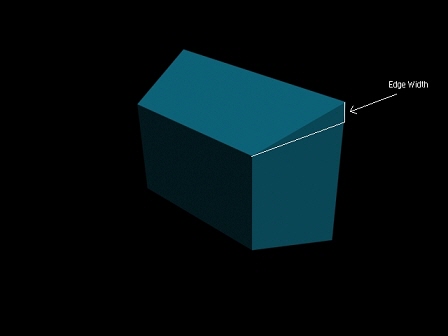

Perceived edge width, in pixels, which represents the brick edge width when the brick is viewed from the perpendicular to the front of the brick. Minimum value is 1. See the following figure:
mortarWidth
Mortar width, or the space between two adjacent bricks. This parameter only accepts positive values.
Initializes a new BricksTextureCommand class object with explicit parameters.

Syntax

Visual Basic (Declaration)
Public Function New( _
   ByVal bricksWidth As Integer, _
   ByVal bricksHeight As Integer, _
   ByVal edgeWidth As Integer, _
   ByVal mortarWidth As Integer _
)
Visual Basic (Usage) Copy Code
Dim bricksWidth As Integer
Dim bricksHeight As Integer
Dim edgeWidth As Integer
Dim mortarWidth As Integer

Dim instance As BricksTextureCommand(bricksWidth, bricksHeight, edgeWidth, mortarWidth)
C#
public BricksTextureCommand(
   int bricksWidth,
   int bricksHeight,
   int edgeWidth,
   int mortarWidth
)
C++/CLI
public:
BricksTextureCommand(
   int bricksWidth,
   int bricksHeight,
   int edgeWidth,
   int mortarWidth
)

Parameters

bricksWidth
Flat area of the brick width, in pixels. Valid range is from 0 to the image width. This parameter only accepts positive values.
bricksHeight
Flat area of the brick height, in pixels. Valid range is from 0 to the image height. This parameter only accepts positive values.
edgeWidth
Perceived edge width, in pixels, which represents the brick edge width when the brick is viewed from the perpendicular to the front of the brick. Minimum value is 1. See the following figure:
mortarWidth
Mortar width, or the space between two adjacent bricks. This parameter only accepts positive values.

Example

Run the BricksTextureCommand on an empty gray image.

Visual Basic Copy Code
Public Sub BricksConstructorExample_S1()
   RasterCodecs.Startup()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg")

   ' Prepare the command
   Dim cmd As New FillCommand(New RasterColor(Color.Gray))
   cmd.Run(leadImage)
   Dim command As BricksTextureCommand = New BricksTextureCommand(60, 20, 3, 4)
   'Apply Bricks Texture on the Image.
   command.Run(leadImage)
   codecs.Save(leadImage, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24)

   RasterCodecs.Shutdown()
End Sub
C# Copy Code
public void BricksConstructorExample_S1()
{
   // Load an image
   RasterCodecs.Startup();
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg");

   // Prepare the command
   FillCommand cmd = new FillCommand(new RasterColor(128, 128, 128));
   cmd.Run(image);
   BricksTextureCommand command = new BricksTextureCommand(60, 20, 3, 4);
   //Apply Bricks Texture on the image.
   command.Run(image);
   codecs.Save(image, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24);

   RasterCodecs.Shutdown();
}

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
