GetRootElement Method
See Also
Leadtools.Dicom Namespace > DicomDataSet Class : GetRootElement Method




element
An item in the Data Set.
Returns the root element of the specified item.

Syntax

Visual Basic (Declaration)
Public Function GetRootElement( _
   ByVal element As DicomElement _
) As DicomElement
Visual Basic (Usage)Copy Code
Dim instance As DicomDataSet
Dim element As DicomElement
Dim value As DicomElement

value = instance.GetRootElement(element)
C#
public DicomElement GetRootElement(
   DicomElement element
)
Managed Extensions for C++
public: DicomElement* GetRootElement(
   DicomElement* element
)
C++/CLI
public:
DicomElement^ GetRootElement(
   DicomElement^ element
)

Parameters

element
An item in the Data Set.

Return Value

The item in the Data Set that is the root of the item specified by element, or a null reference (Nothing in Visual Basic) if the Data Set is empty or element is null.

Example

For an example, refer to Load.

Remarks

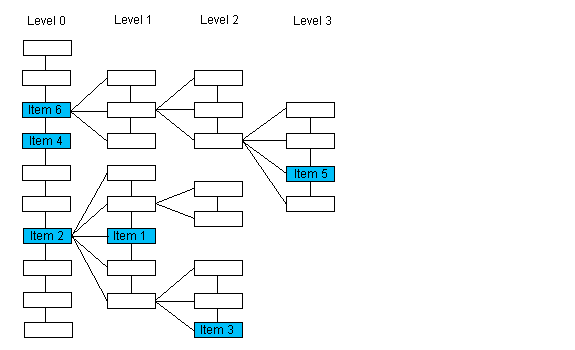

The root is the Level 0 ancestor of element. If element points to an item on Level 0, the object returned points to that same item. Please note that the numbering of the items in the following illustration is arbitrary and does not imply order.

If the passed object points to:The method returns an object pointing to:
Item 1Item 2
Item 3Item 2
Item 4Item4
Item 5Item 6

The following methods will also help you navigate the Data Set:

GetFirstElement

GetLastElement

GetNextElement

GetParentElement

GetChildElement

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
